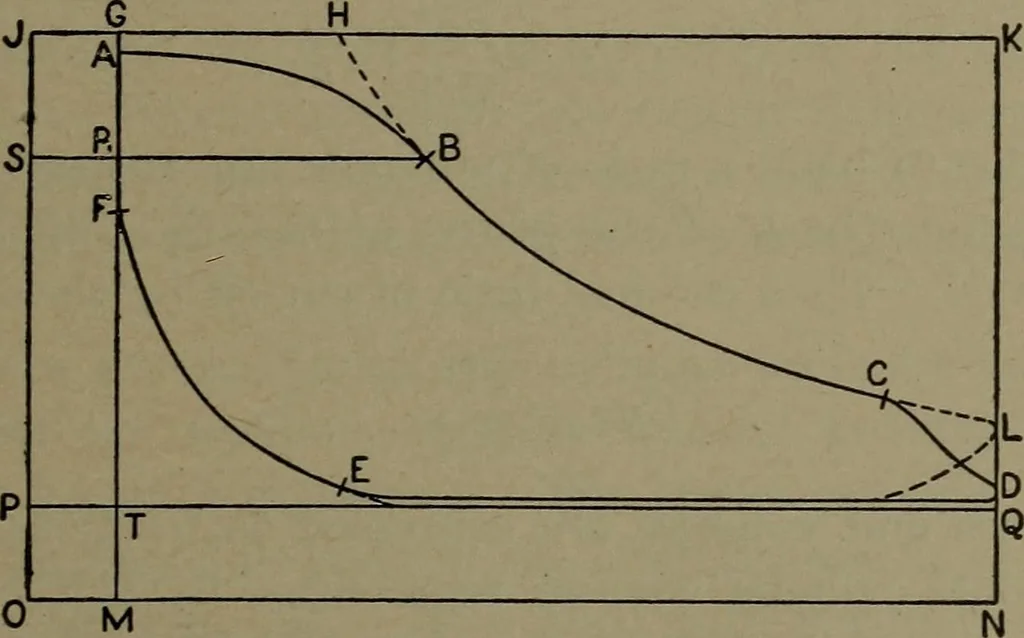

n (the crank being on dead center) together withthe steam port or ports at one end. It is expressed as a fraction orpercentage of the nominal volume, which is also the ratio of OM to MN. Finally the expansion curve is produced upward to meet the line ofboiler pressure at H and downward to the end… … 0 m Fig. 73. —A Sample Indicator Diagram. (c) Admission. — This operation begins at F; but the filling of theclearance space is so closely allied with compression that it can betterbe considered in that connection, in Art. (i). Starting at A, with theclearance filled, we note that the initial…
