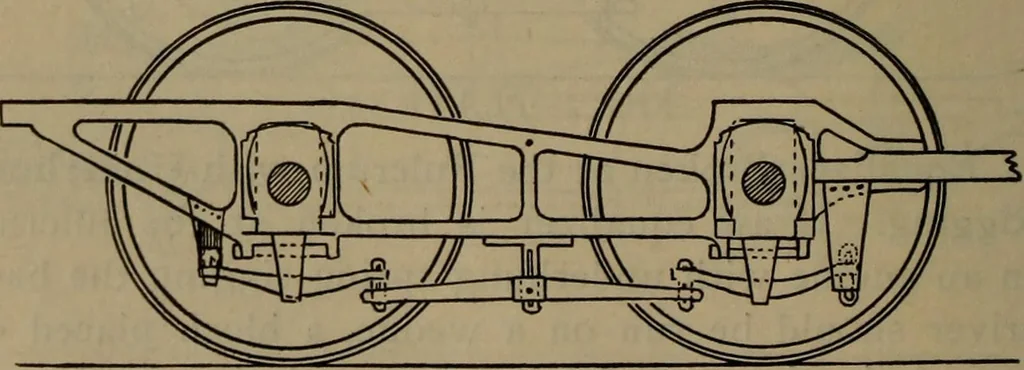

PLATE 97. Back Hanger of the Back Spring with UnderhungRigging. If the back hanger of the back spring ofan eight-wheel underhung engine is broken, the backdriver should be run on a wedge, a block placed ontop of the front driving box, the back driver run offthe wedge. The forward driver should then… … PLATE 98. BREAKDOWNS. 219 on a wedge, a block placed between the back endof the back spring and the lower rail of the frame,and the forward driver run off the wedge. Xext runthe back driver on the wedge, remove the block fromthe front driving box, and run the back driver off thewedge. The engine is…
