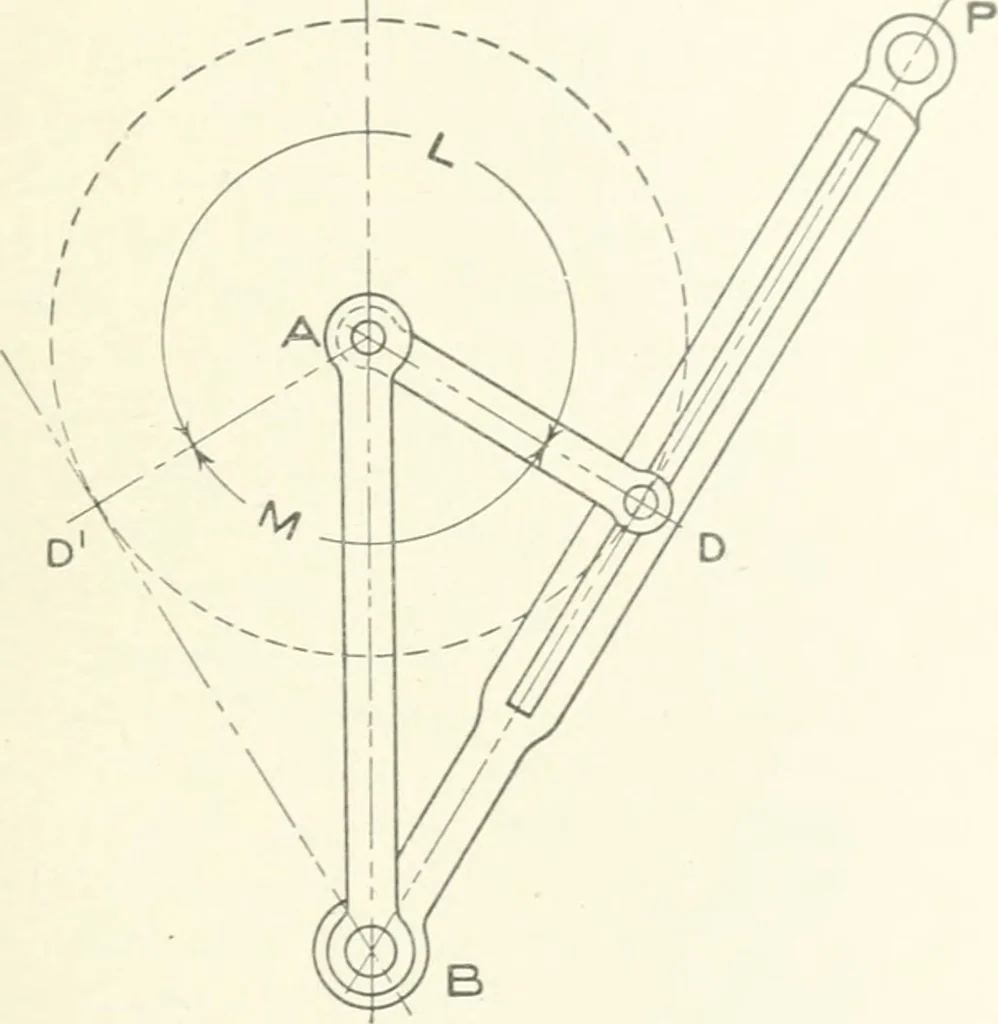

hat is known as a swirio-.iiiji; bhjck linka<rt. P^icr. 57 shows this f<jrMi of quick return riio-tion. The jjiece which drives the UxA is attached to the slottedlink at 1*. which iiiav he anywhere aloiiy; the link. The linkac-e igshown at the extreme right of its stroke, the point D being at… … Fig. 57. at the other extreme of the stroke. The time of advance is to thetime of return as ano-le L is to antjle M, as in the case of theWhitworth quick return. If the ratio of advance to return andthe length of AD are known, the position of B may be found bydrawing the circle with center A and…
