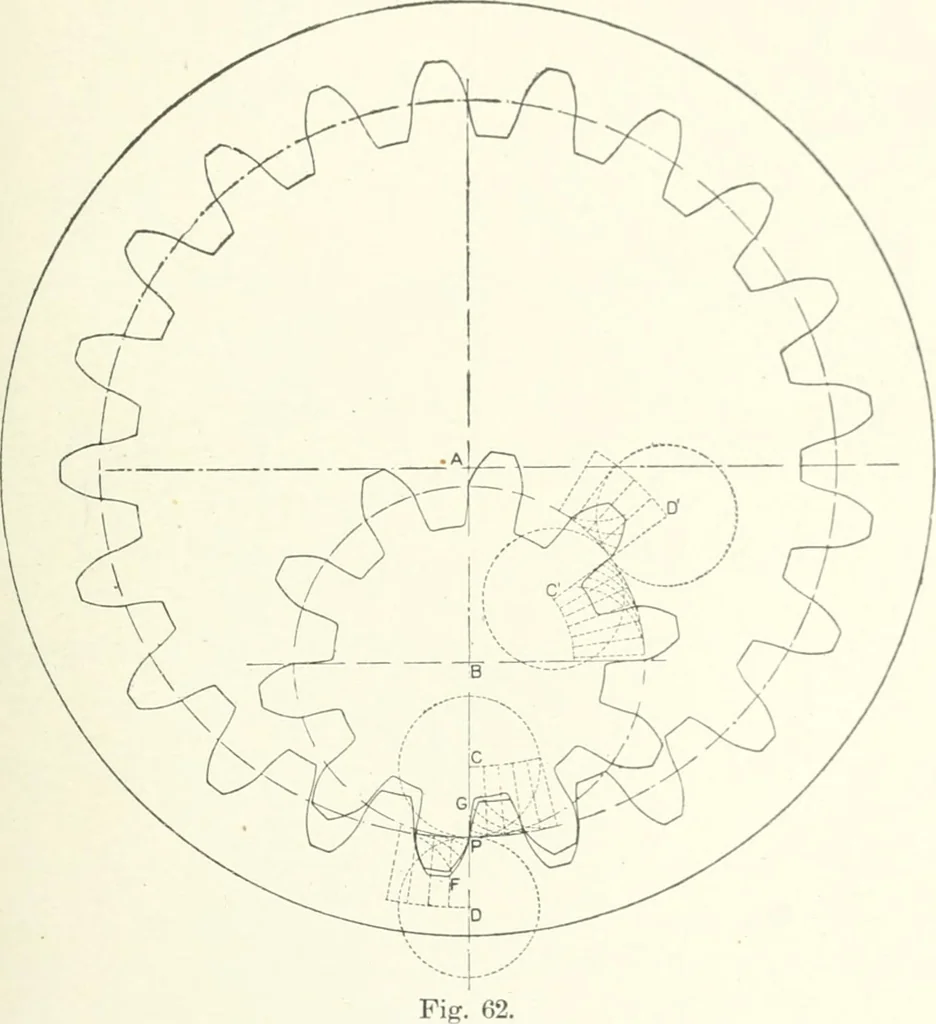

364 MECHANISM. Tlieso are the involute and tlie epicycloidal curves. V\ir. 00shows a pair of gears witli epicycloidal teeth and Fig. f»l showsparts of two gears with involute teeth. The construction for get-ting the tooth outlines is shown in the figures, but as this properlycomes under the subject… … Annular Gears. An annular gear is a ring with teeth on itsinside edge. Fig. 62 shows such a gear with center at A, mesh-ing with a small spur gear called the pinion. Rack and Pinion. A rack is a gear whose pitch line is astraight line instead of a circle. Fig. 63 shows an epicycloidalrack in gear…
