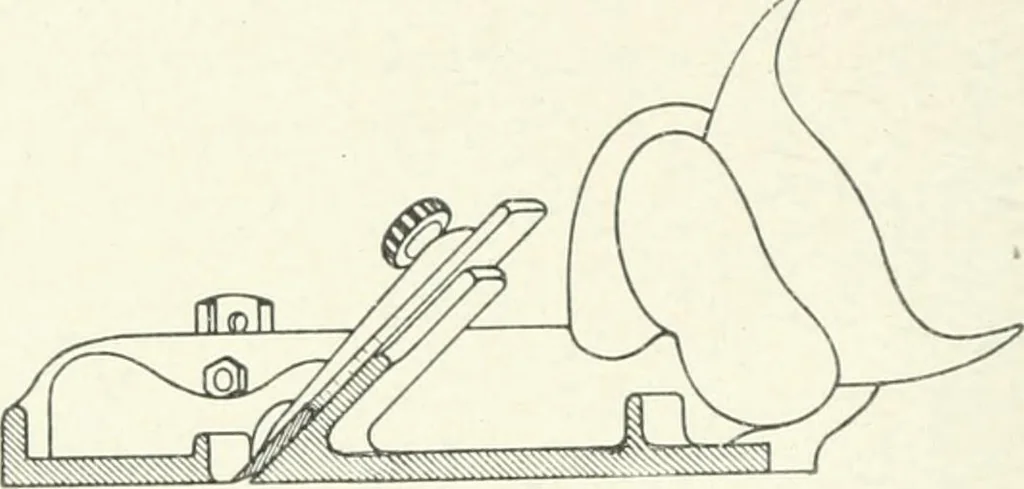

. The face of this plane is always flat and at right anglesto the sides. It is used in working out square angles and corners, 27 20 PATTERN MAKING or laps as they are called in carpentry, and also for workinglap joints, as shown in Fig. 31. Fiir. .31. The skew-iron rabbet plane, in which the… … Fig. 32.plane shown in Fig. 32 is fitted with depth gange, and also with a spurcutter, both of which are often of great convenience to the workman,Rabbet planes are made in sizes ranging from \ inch to l\inches in width. The t-inch and 1^-inch are oonvenient sizes forgeneral work.
