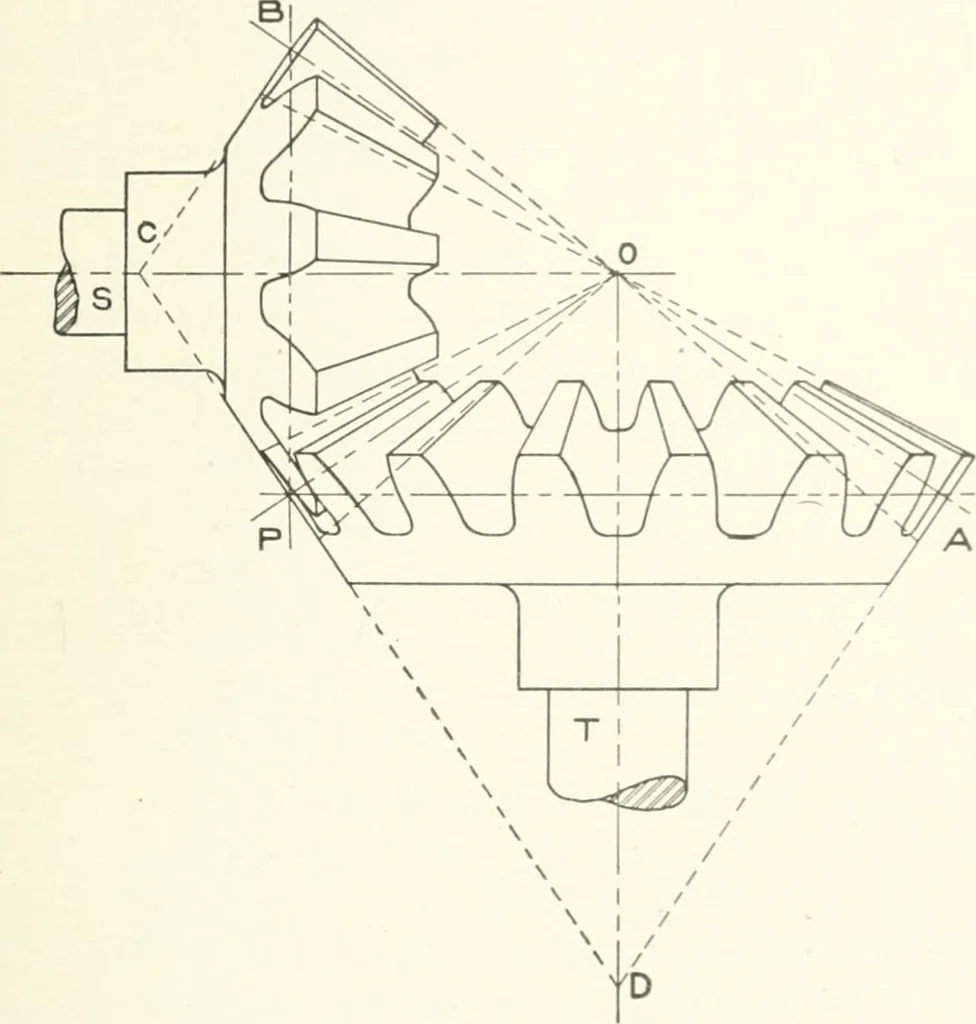

Fig. G.3. 366 MECHANISM. 59 Bevel Gears. IVTien two shafts whose axes intersect are tohe fuiinected l)y gears, the gears commonly used are called bevelgears. The theoretically correct pitch surface of a bevel gear is a])art of the sector of a sphere, but as the designing and makingof such a gear is… … Fiff. 64.which are at right angles. O is the })oint where the center linesof the shaft intersect, OPA and OPB are the pitch cones of thegears, AP and BP the pitch diameters. The speed of the shaft S is to the speed of the shaft T as APis to ]>P. The teeth uiay be epicycloidal or involute, and…
