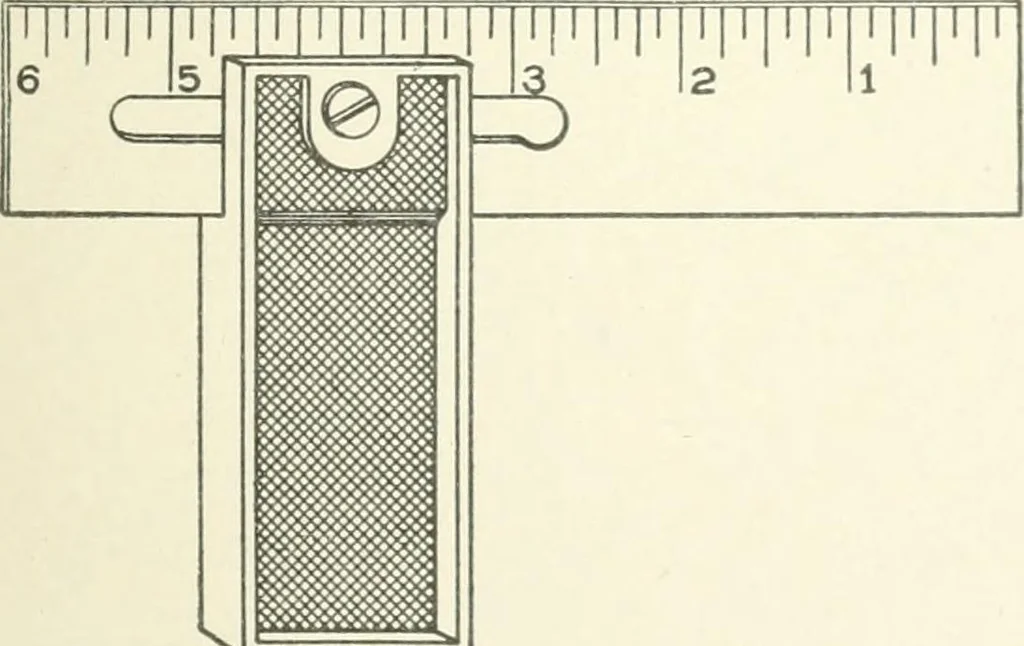

Pig. 50. this square can be firmly secured in its seat at any j)oint. Whenthe blade is carried entirely to the front of the handle, it is likean ordinary try-square; and the moving of the blade makes thesquare equally perfect down to one-quarter-inch length of blade,or even less. … Fig. 51. With one adjustable square of this kind^ six inches in length,only one 8-inch or one 10-inch ordinary scpiare will be foundnecessary. 35 28 PATTERN MAKING A still more convenient, but slightly more expensive, formof adjustable try-square is shown in Fig. 52. It differs from tliatshown in…
