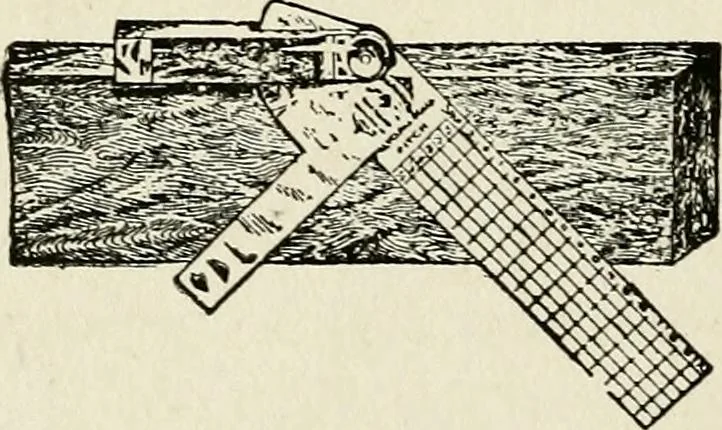

ing the angle forthe treads and the other for the risers. This is called a pitch-square, being especiallydesigned for laying out roofs. The Topps Fram-ing Tool, Fig. 6, isanother very curiousand very ingenioussquare, and is intend-ed as a sort of ready- Fig. 6. Topps Framing Square , ,, reckoner,… … INTRODUCTION 19 A. Topp, of Indianapolis, to be a great timesaver, as no figuring is required for finding thelengths or bevels of rafters, and it enables theordinary workman to frame roofs speedily andwith absolute certainty. I have examined thistool and found it to be just as represented. Another…
