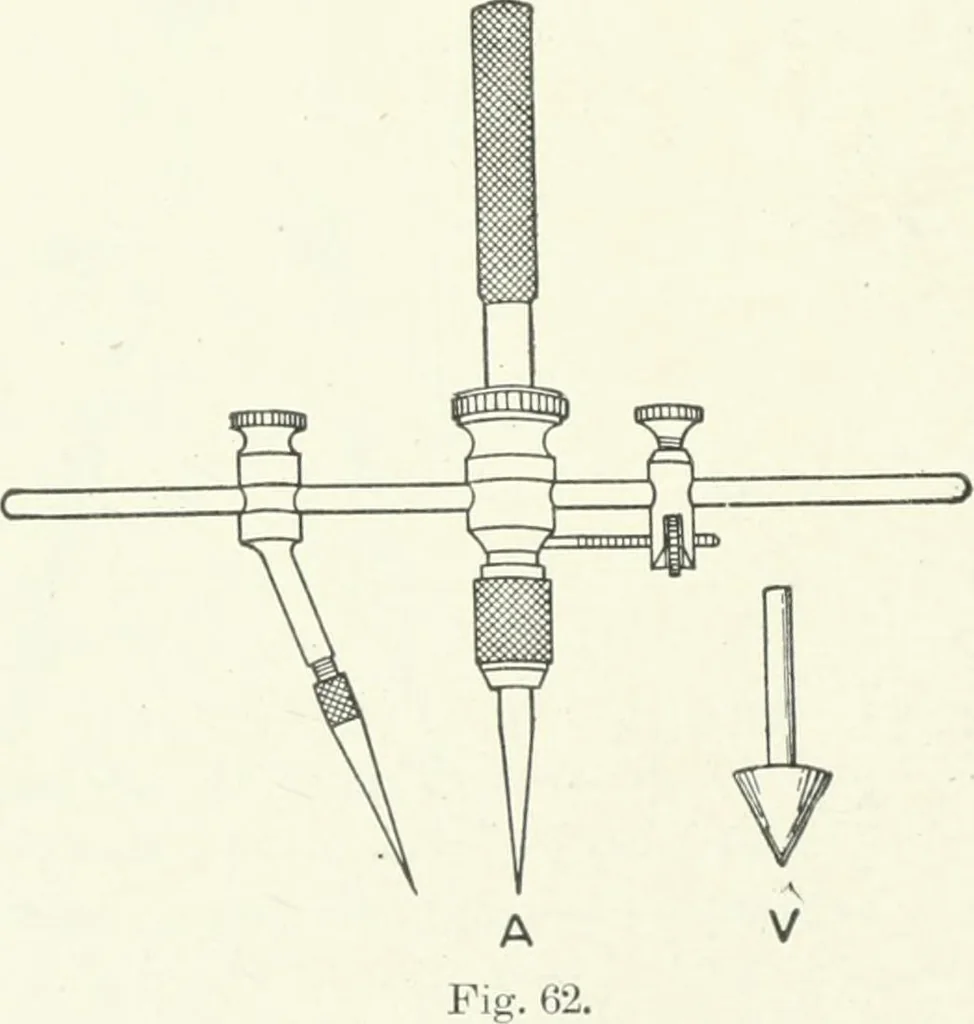

B C D Fig. G2A. adjusting wing calipers for outside measurements; and Fig. 64the firm-joint outside calipers, used for thi> same purpose. I 40 PATTERN MAKING 38 Inside calipers for taking inside^ dimensions ;iiid insidedistances arc shown in Fig. G5.
