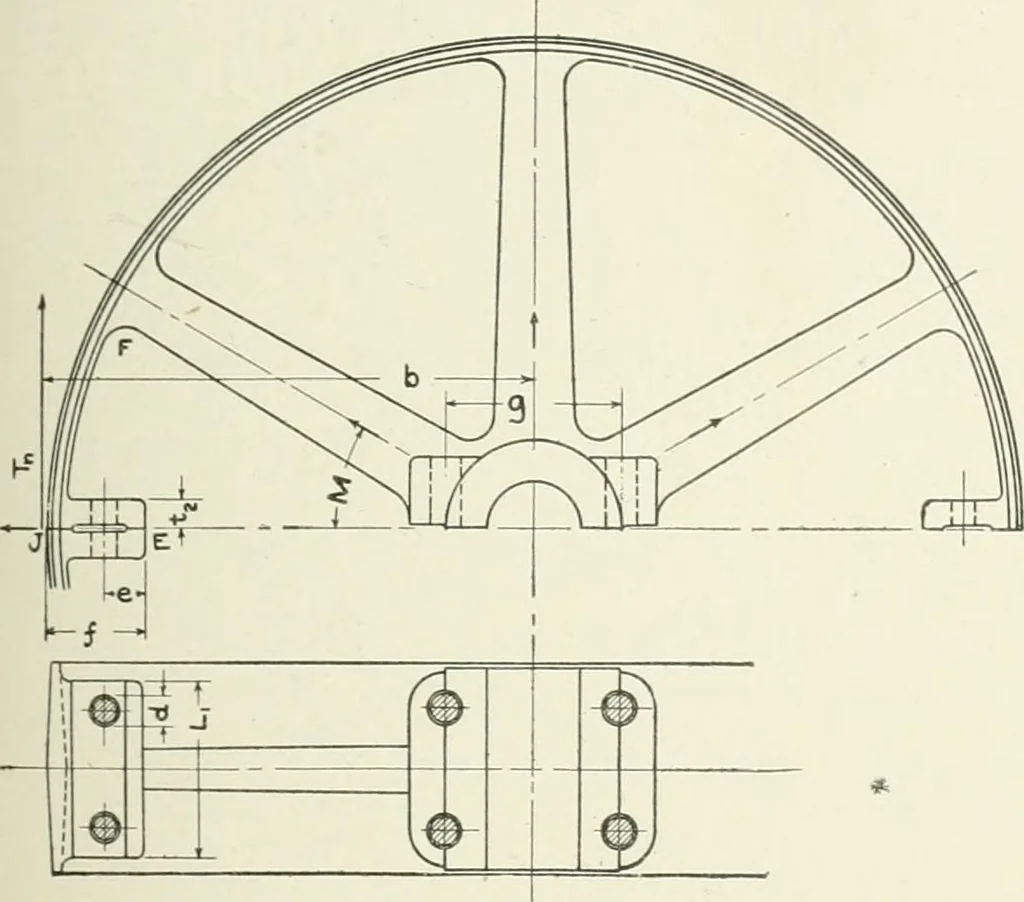

When the pulley is inplace on the shaft, bolted up as one piece, it is subjected to thesame forces as the simple pulley. Hence its general design fol- MACHINE DESIGN lows the same principles, and we need only stiidj^ tbe fastenintr ofthe two halves, and the effect of this fastenincr on the detail… … ^^j from the arms and hub, as in the simple jjuUey, and that the cen-trifugal force developed by it has to be taken by the rim boltsalone. In other words, consider the rim bolts as belonging en-tirely to the rim, and make them as strong as the rim, leaving thehub bolts to take the centrifugal force…
