Cyclopedia of mechanical engineering; a general reference work. Editor-in-chief Howard Monroe Raymond. Assisted by a corps of mechanical engineers, technical experts, and designers of the highest professional standing (1908)

American School (Chicago, Ill.), Raymond, Howard Monroe · Chicago American Technical Society · leaf 316

An illustration from Cyclopedia of mechanical engineering; a general reference work. Editor-in-chief Howard Monroe Raymond. Assisted by a corps of mechanical engineers, technical experts, and designers of the highest professional standing, 1908, leaf 316

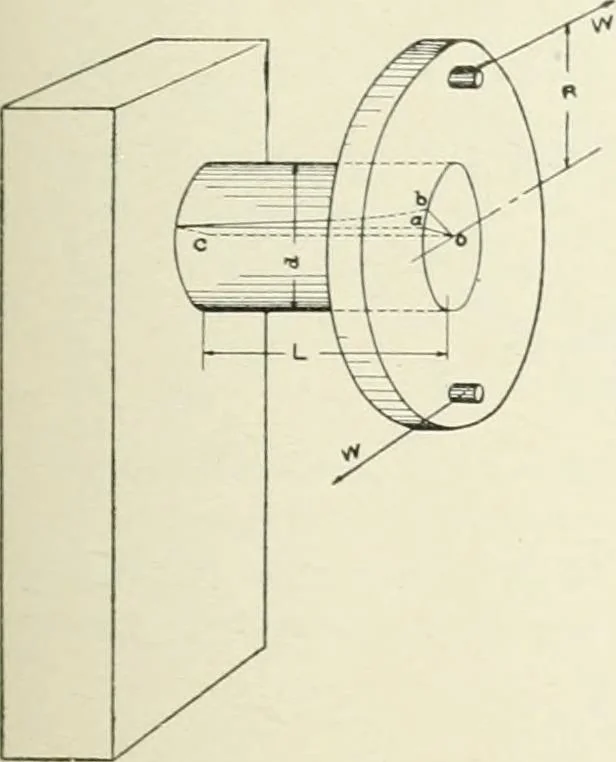

having a similar disclock with the first one by meansof lugs on its face, thus receiving and transmitting the torsion. If the distance L becomes very great, both the angular deflec-tion due to twisting, and the sidewise deflection due to bending,become excessive, and not permissible in good design.… … F\g. 26. 102 MACHINE DESIGN flection can be decreased only l>v hriiiiriiiir the resistance and loadnearer together. The above implies, of course, that tlie diameter of the shaft is notchanged; it being obvious that increase of diameter means increase of strengthand corresponding decrease of both…
