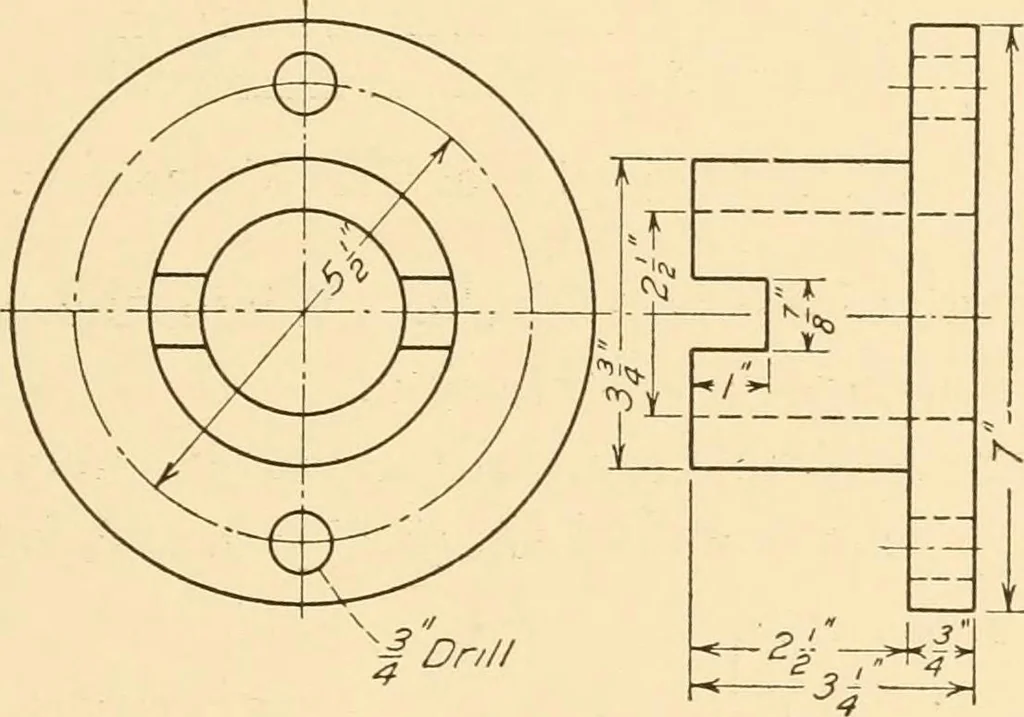

prove very expensive. Clearthinking should be expressed in clear, easily read drawings. 16. Shop Drawings.—Drawings for machinery are made up of viewsobtained by orthographic projection and arranged in accord with thethird angle. The number of views depends upon the object or construc-tion to be… … Fig. 11. A Two-View Drawing. 17. A two view drawing is shown in Fig. 11. Three views of a black-smiths sow are given in Fig. 12. The top view shows surfaces A, Band A. The meaning of the horizontal lines which limit surface B cannotbe understood without looking at the end view which shows that…
