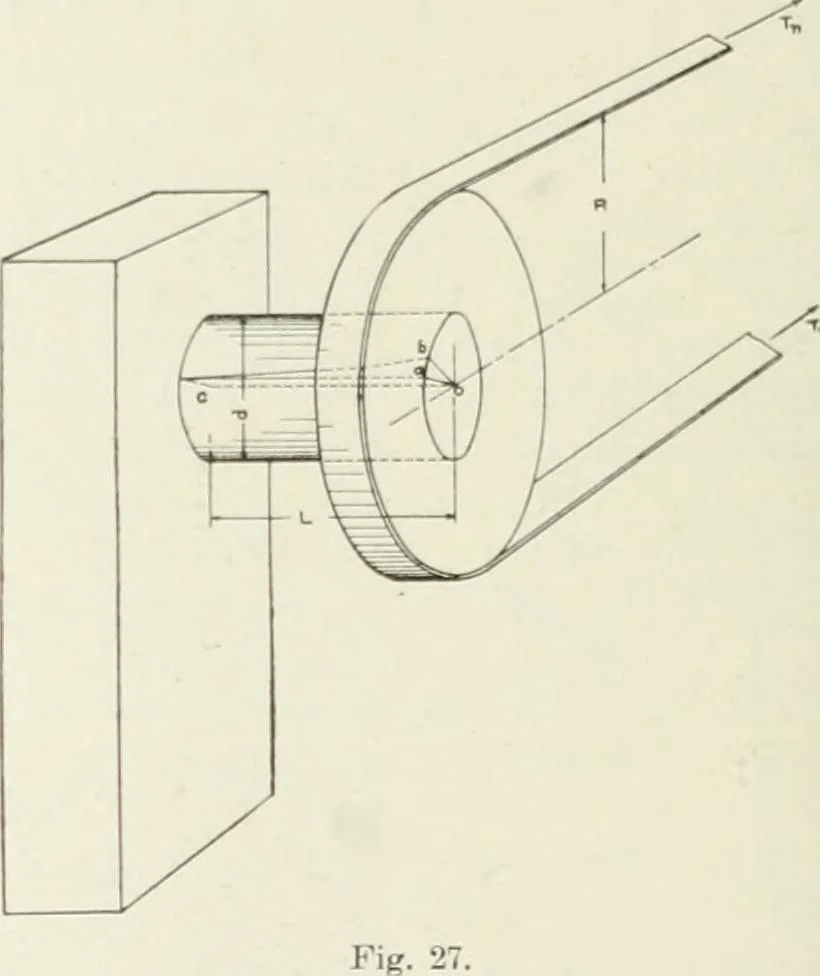

An illustration from Cyclopedia of mechanical engineering; a general reference work. Editor-in-chief Howard Monroe Raymond. Assisted by a corps of mechanical engineers, technical experts, and designers of the highest professional standing, 1908, leaf 317
ether. The above implies, of course, that tlie diameter of the shaft is notchanged; it being obvious that increase of diameter means increase of strengthand corresponding decrease of both angular and transverse deflection. If the speed of the shaft he very high, and the distance be-tween bearings,… … single step farther to illustrate the actual working conditions ofshafting in machines. Suppose the rigid post to have the shaftpassing clear through it, and to act as a bearing, so that the shaftcan freely rotate in it. the resistance being e.xerted somewhere be-yond. The twisting moment will be…
