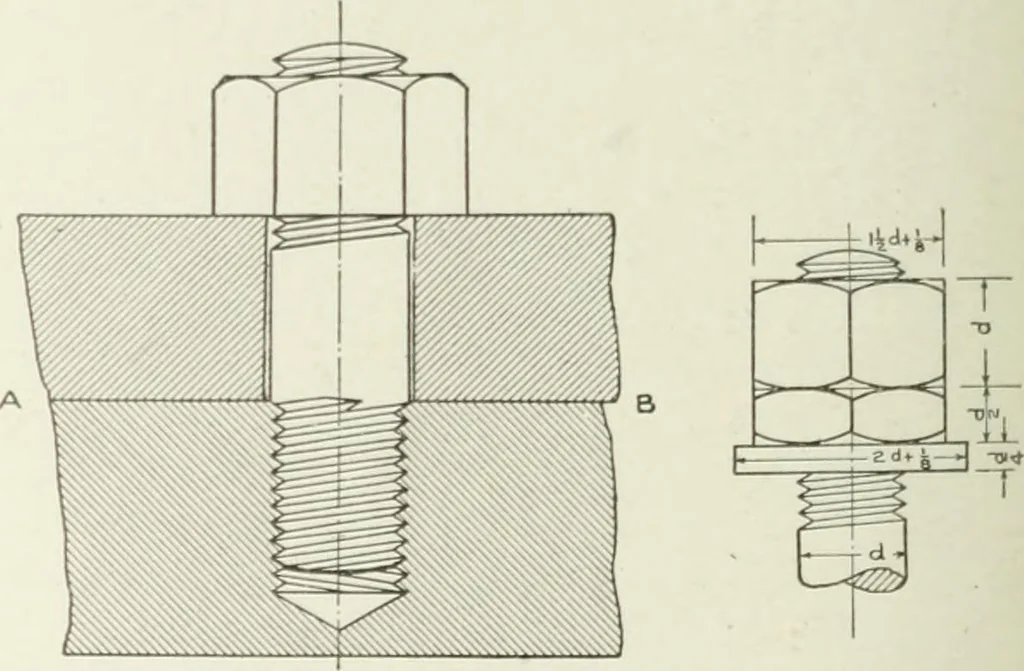

clamp machine parts together, and yetpermit these same ])arts to be readily disconnected. The boltpasses through the jtieces to be connected, and, when tightened,causes surface compression between the parts, while the reactionson the head and nut j)roduce tension in the bolt. Studs and tapbolts… … Fig. 5.J. Fifr. 5oa. a bolt in clamping two machine parts together, more especially ifthere is an elastic packing between them, may be representeddiagrammatically by Fig. 56, in which a spring has been introducedto take the compression due to screwing up the nut. Evidentlythe tension in the bolt is…
