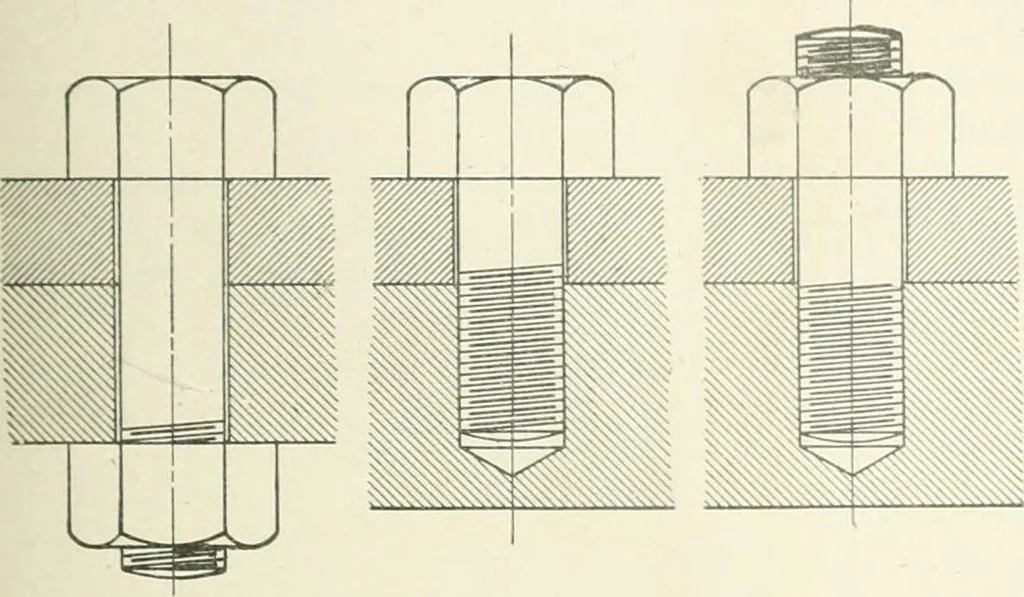

eads, and are found both in the rougli form,and finished from the rolled hexagonal bar in the screw machine. 3. Studs (Fig. 03j, rough or finished stock, threaded in thescrew machine. 4. Set screws (Fig. 64), usually with square heads, andcase-hardened points. Many varieties of set screws are made,… … Fig. 61. Fig. 62. Fig. G3. 5. Machine screws (Fig. 64*/), usually round, button,or countersunk head. Common proportions are indicated relativeto diameter of body of screw.
