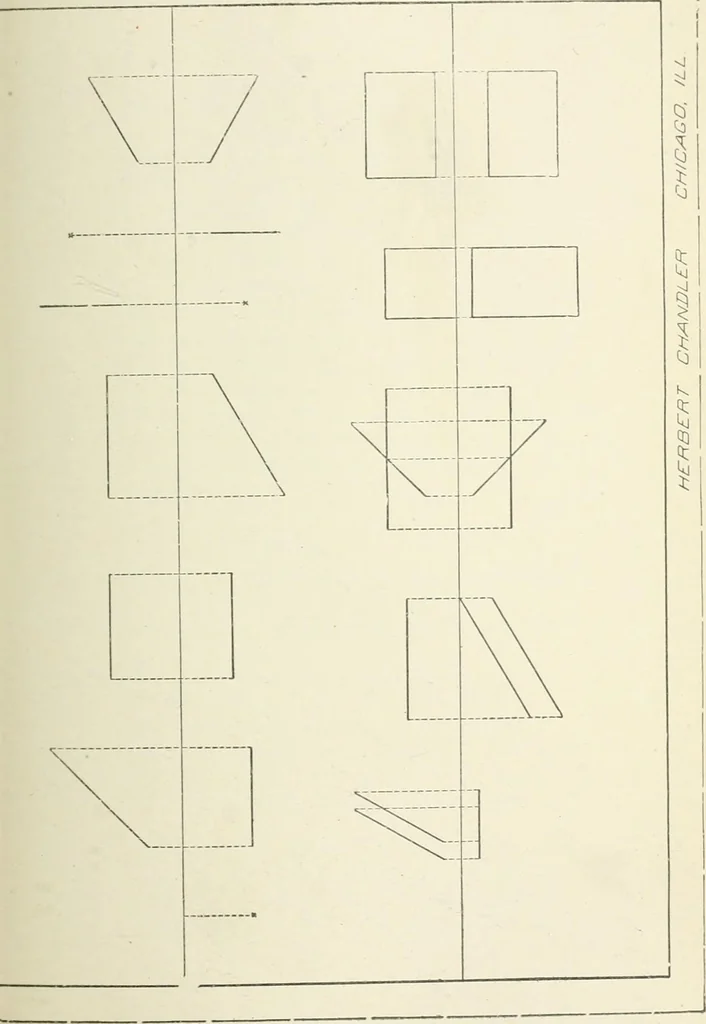

zontal. Tiielower end of each line is ^ inch above H. Tho right-hand end ofthe right-hand line is to be 2| inches from the left-hand margin. PROBLEM 9. Draw the projections of two parallel lineseach 2 inches long. Both lines to be parallel to the horizontaland make .an angle of 30 degrees with the… … MECHANICAL DRAWING. above II and ^ inch from the vertical, and the other to be oblic|ueto both phuies and of any desired length. PROBLEJI 11. Draw plan and elevation of a prism 1 inchsquare and 11 inches long. The prism to have one side on theliorizontal plane and the long edges perpendicular lo V.…
