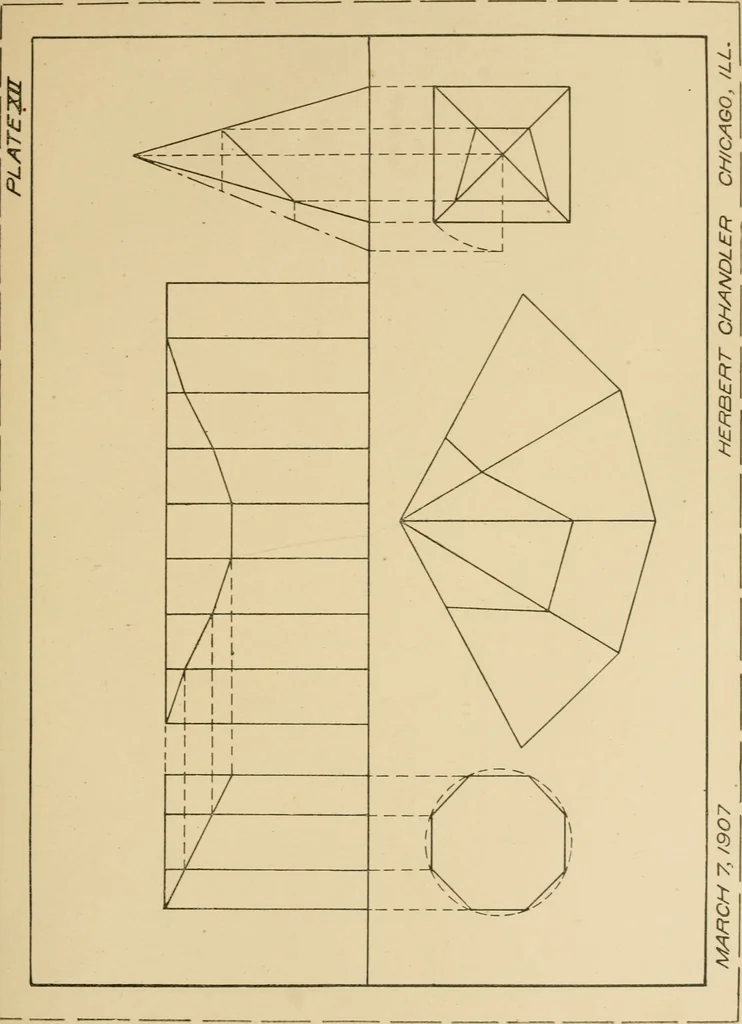

that A B equals 1§ inches, and A O equals 2^ inches. Inthis figure the development may be drawn in any convenientposition, but in the case of the prism it is better to draw thedevelopment as shown. Indicate clearly the construction byinking the construction lines. PLATE XIIL Isometric and Oblique…
