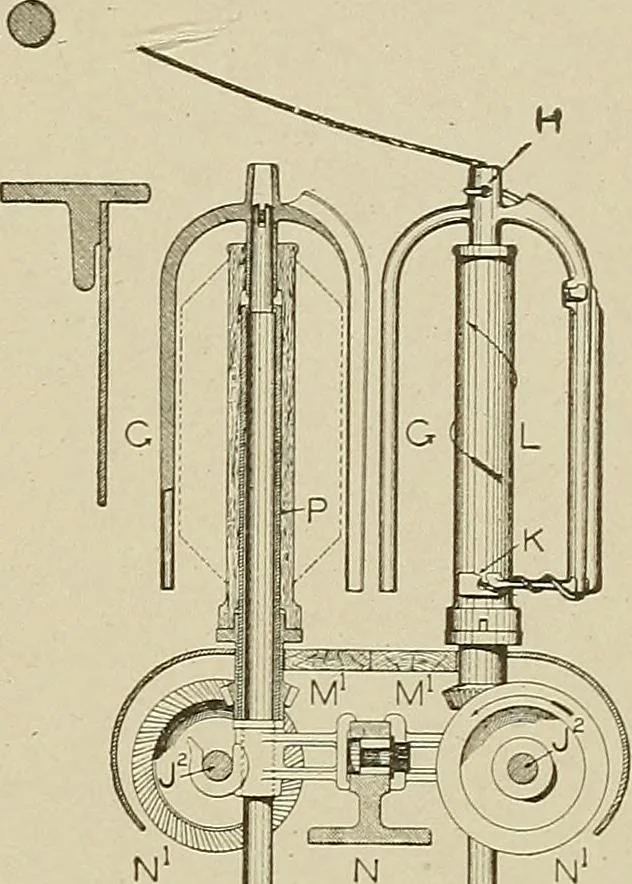

Fig. 161. Sectional Elevation of Fine Fly Frame. which is fastened to the bobbin rail and the bobbin, which seemsto be upon the spindle, is simply a loose fit around the bolster. The spindles are driven from the spindle shaft, P^, by the 233 COTTON SPINNING 191 … 1^ ^4 bevel gears, L^ and T^, and the bobbins are driven from the bobbinshaft, J2, by the bevel gears, M^ and N^ The gear, M^, revolvesupon the bolster and the bobbin, which is slotted on the bottom, isdriven from the gear by a pin whichfits into one of the slots. The bobbinrevolves between the…
