Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)

American School (Lansing, Ill.) · Chicago : American school of correspondence · leaf 277

An illustration from Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects, 1911, leaf 277

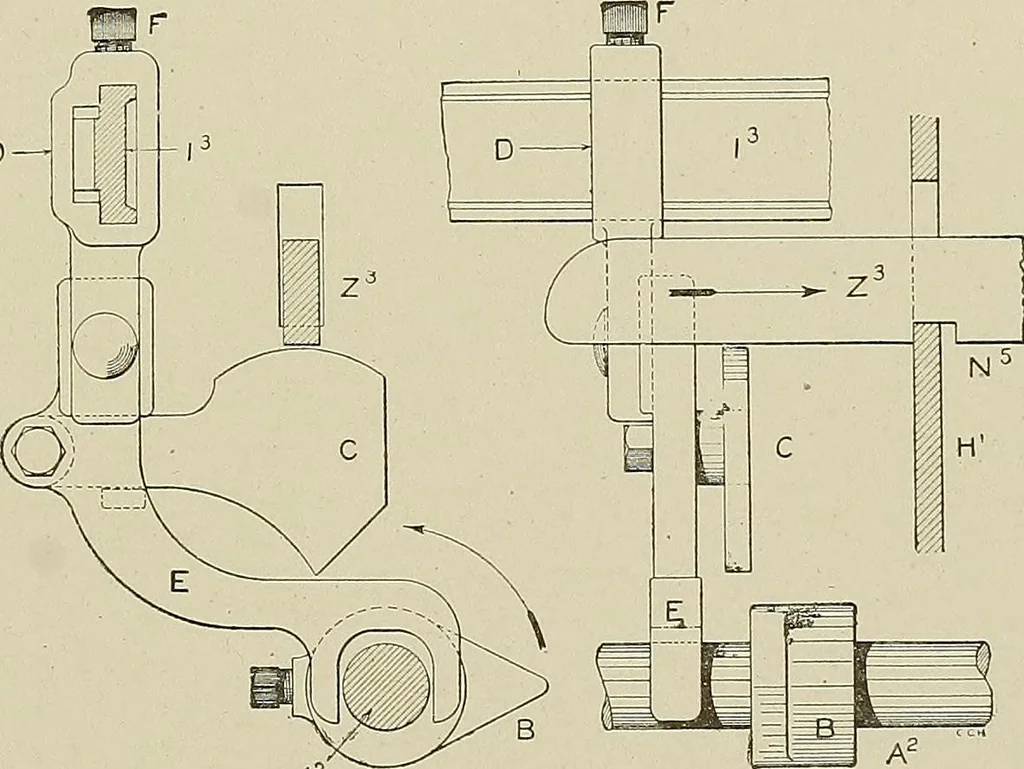

ng shaft, A^, at apoint directly under the end of the stop-motion latch, TI, which pro-jects through the rectangular slot in the support, H^. As the lifting shaft revolves, the cam is brought into contact withthe lifter, forcing it upward against the underside of the stop-motionlatch and lifting… … Fig. 174. Full Bobbin Stop Motion. against a collar, P^ which is fastened to the rod and which may be setto increase or decrease the tension upon the spring. The free end ofthe spring rod passes through a hole in the support, and the otherend is connected to the stop-motion latch. When the notch in…
