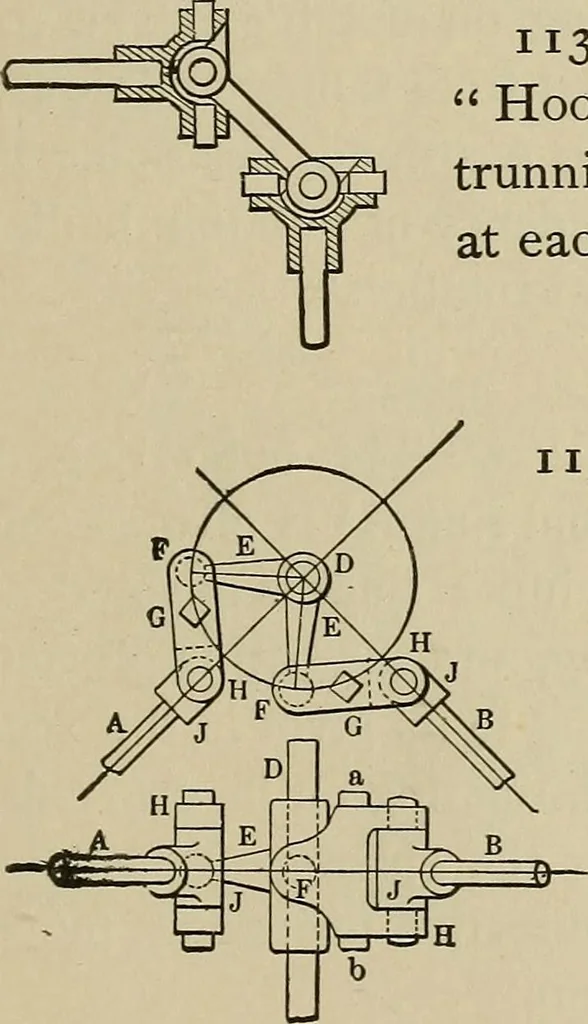

1132. UNIVERSAL JOINT, with a singlecross link. Good for angles of 45° and under. 1133. DOUBLE LINK UNIVERSALJOINT, good for larger angles than above.The connecting link may be made short andguarded, with a sleeve to prevent kinking. … 1134. UNIVERSAL ANGLE COUPLING, Hookes principle. Each shell carries a doubletrunnion ring, the connecting link being pivotedat each end to the rings. 1135. ALMOND ANGULAR SHAFTCOUPLING.—The yoke links G, G arepivoted to the sockets on the ends of theshaft, and to the right-angled arms on thesleeve…
