Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)
American School (Lansing, Ill.) · Chicago : American school of correspondence · leaf 368

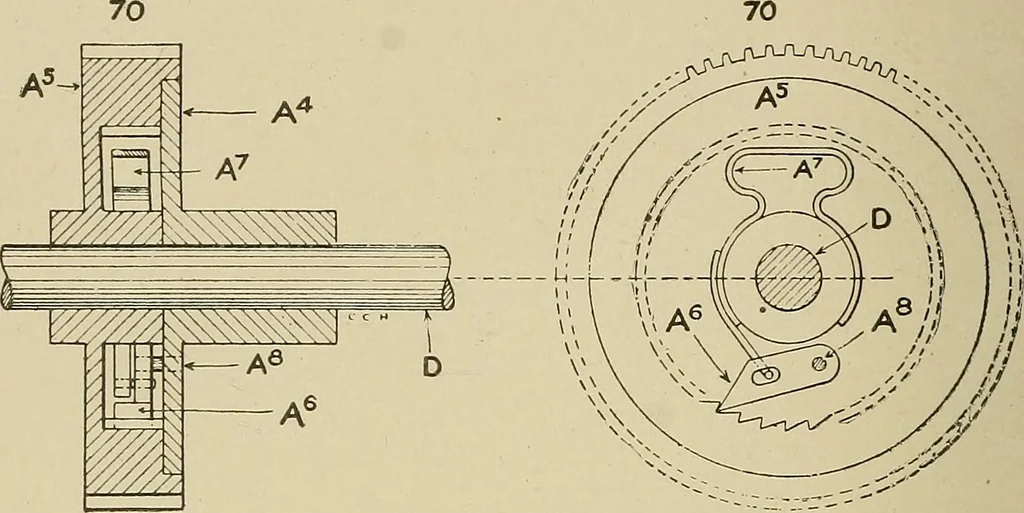

e front roll is driven from thetwist gear, as already described, but when it runs in, motion is com-municated to the front roll, from the carriage shaft, through the gearsof twenty-two, fifty and seventy teeth (Fig. 222) by the pawl engagingthe teeth of the roller motion gear. 329 ^88 COTTON… … Fig. 240. Roller Motion. There may not be enough gain in the carriage. If the counter faller is too high on the outward run, it will liftthe yarn from the points of the spindles. The rim and spindle bands may be too slack. If the ends are left down too long, snarls will be made, when theend is…
Textile fabrics · Textile industry
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
