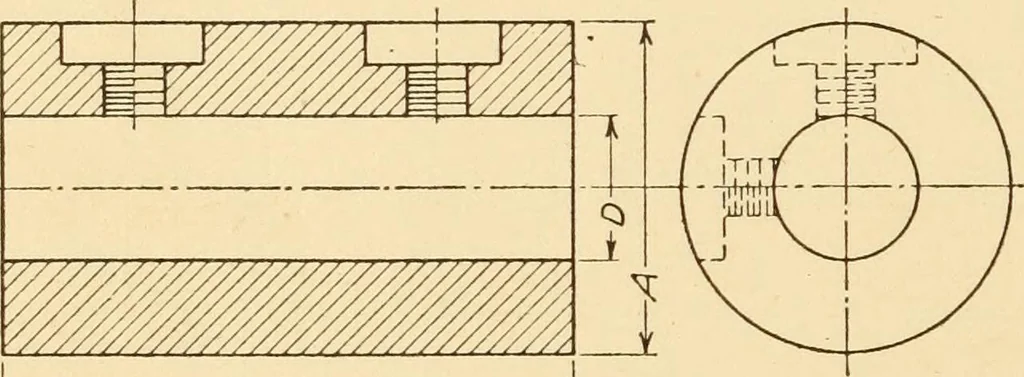

an the square corner shoulder. A part of a shafting drawing is shownin Fig. 183. Note the various series of dimensions, the location ofbearings, pulleys and other details. 144. Couplings.—Couplings for joining lengths of shafting togetherare made in many forms. A solid sleeve or box coupling is a… … ^ /////A B- D A B 1516 2^ 4 fe ^i ^a fe 3 ^/ hi 3 5^ Is 3 6 //# 4 7 Fig. 184. Solid Sleeve Coupling. 145. The split box or clamp coupling shown in Fig. 185, is made inhalves which are bolted together and are keyed to the two shafts. Somedimensions are given in Table 20. 146. A simple flange…
