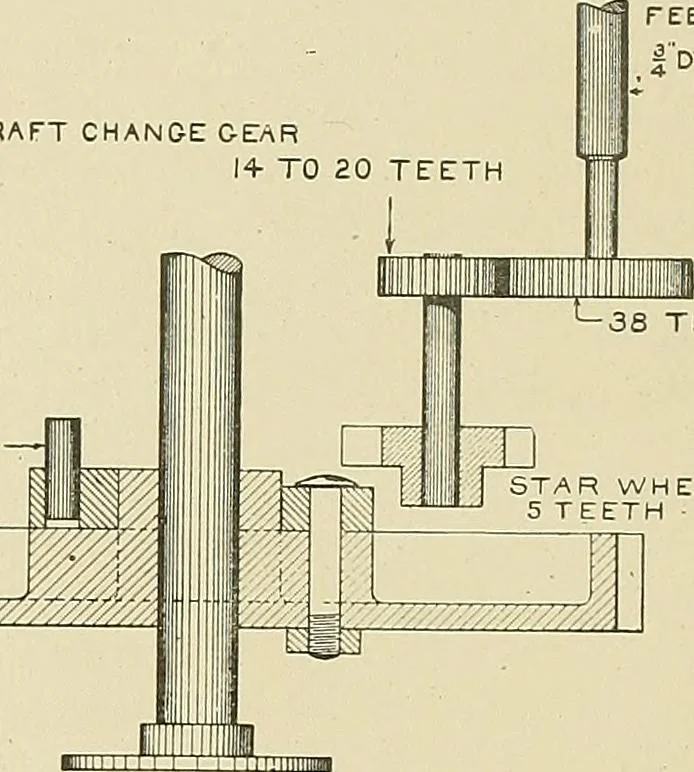

bottom feed roll, C,any movetnent given to the starwheel would thus be communi-cated to the feed rolls. During a portion of each revolution of the cylinder shaft, thepm, F1-, which describes a circle of about five inches in diameter,engages one of the teeth of the starwheel, causing it to turn… … TIMING DIAL Fig. 114. Section of Feed Roll Gearing. To prevent any movement of the starwlieel, while it is not being acted upon, the face of its teetli are made concentric with the plate, E^, on the hub of the gear, D, with wliich it is in contact. The mo\ement of tlie feed roll, at each revolution…
