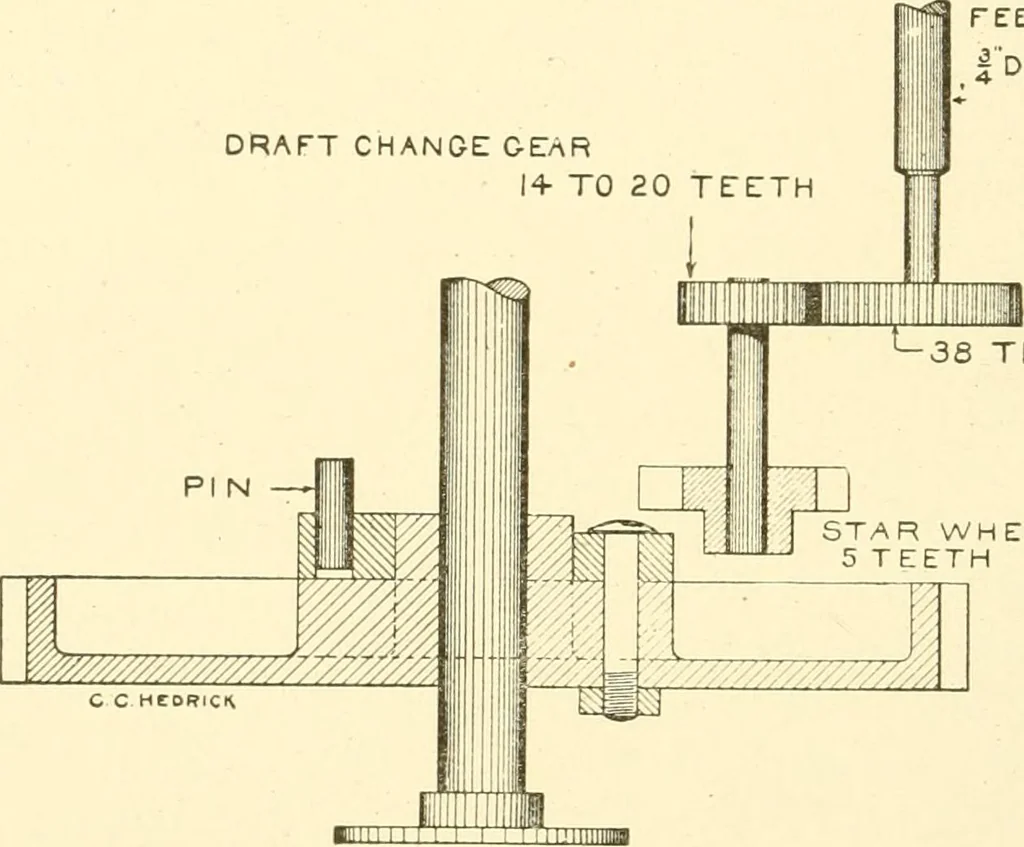

e bottom feed roll, C,any movement given to tlie starvvheel Avould thns be connnuni-cated to the feed rolls. During a portion of each revolution of the cylinder shaft, thepin, Fi, which describes a circle of about five inches in diameter,engages one of the teeth o.f the starwheel, causing it to… … STAR WHEEL5 TEETH TIMING DIALFig. 114. .Section of Vetd Roll (Tearing. To prevent any movement of the starwheel, while it is not beingacted upon, the face of its teeth are made concentric with theplate, E^, on the hub of the gear, D, with which it is in contact. The movement of the feed Ioll, at…
