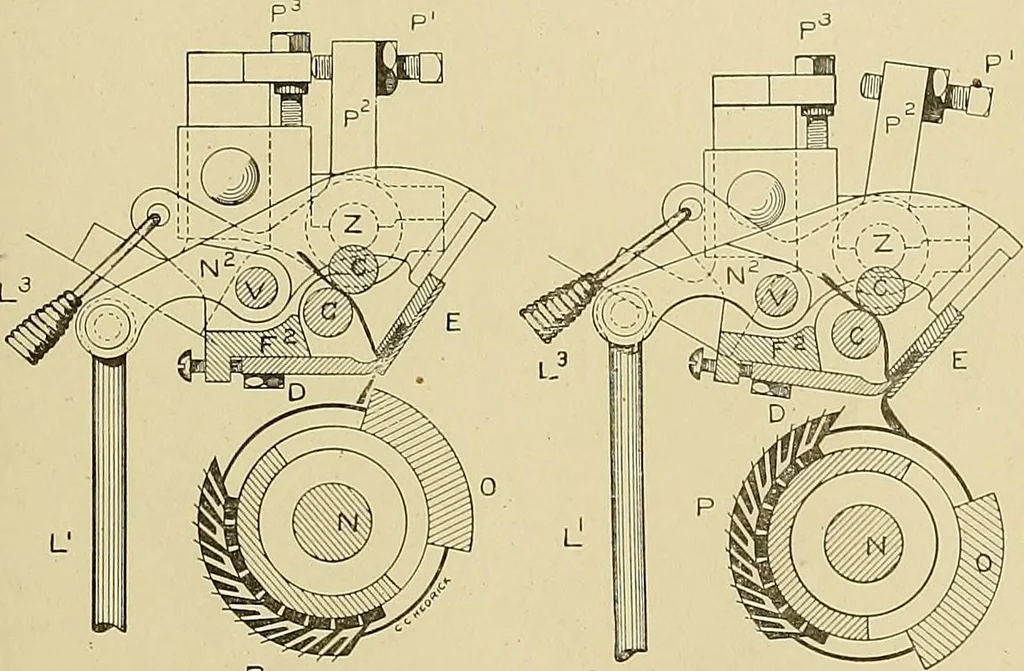

COTTON SPINNING. 141 rods, L^. The nipper cam makes one revolution to one of tliecylinder and, at each Ievolutioii, the opening and closing ofthe nipper and cushion plate takes place which corresponds to tliemovements of the cylinder. To follow these movements, Figs. 117, 118, 119 and 120have been… … P Fig. lis. Fig. 119. Sections showing Nipper and Cushion Plate. fluted segment and half lap. Fig. 120 is a diagram of the nippercam showing certain points wliich correspond to the figures ontiie timing dial. In Fig. 117, it is assumed that tlie needles liave finishedcombing and the nipper and…
