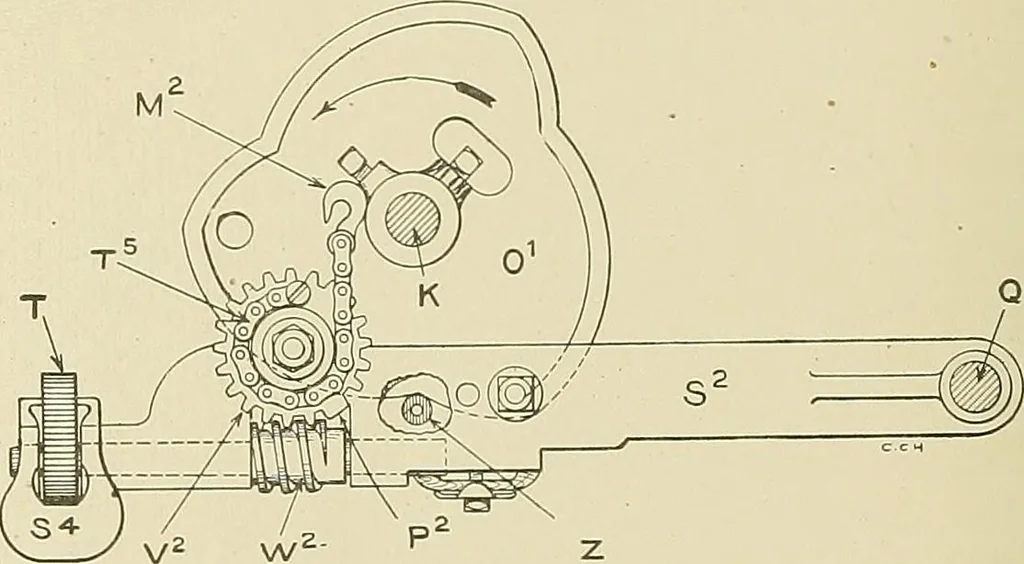

lly goes higher until it reaches the top of the bobbin. This 250 COTTON SPINNING is accomplished in the following way: The worm, W^, instead ofengaging a rack as on the warp builder, is in gear with a worm gear,V^, the hub of which is made as a drum upon which the builder chain,T, is wound. The… … Fig. 313. Filling Builder. turned, it is gradually unwound and the traverse is allowed to goliigher on the bobbin. The builder is wound back with a key, thesame as the warp builder. - The filling cam, O^, is made with three lobes, so each revolutionof the cam shaft causes the ring rail to make…
