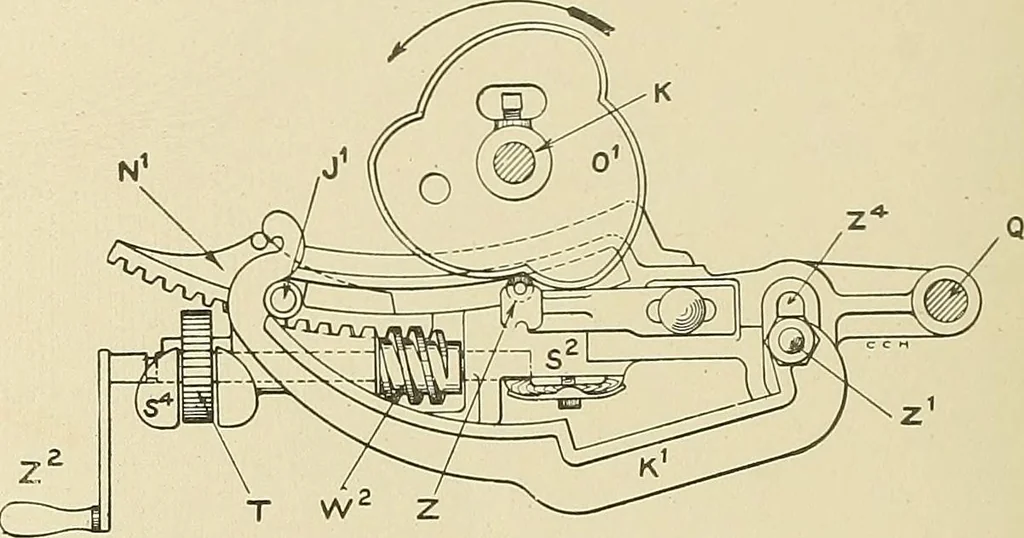

Fig. 314. Fining Bobbin. COTTON SPINNING fulcrum of the builder arm is at Q; the throw of the cam is shown bythe distance between the center of the cam rolls, A and B. When the rail is traversing its greatest distance and the rack iswound out, the hook is at G and the length of the traverse is… … rig. 315. Combination Builder. sented by the distance between the horizontal lines, C-D. But whenthe bobbin is full and the traverse is shortened to its extent, the point,G, where the hook is attached, has moved in to H and the traverseof the rail is represented by the distance E-F. The distance…
