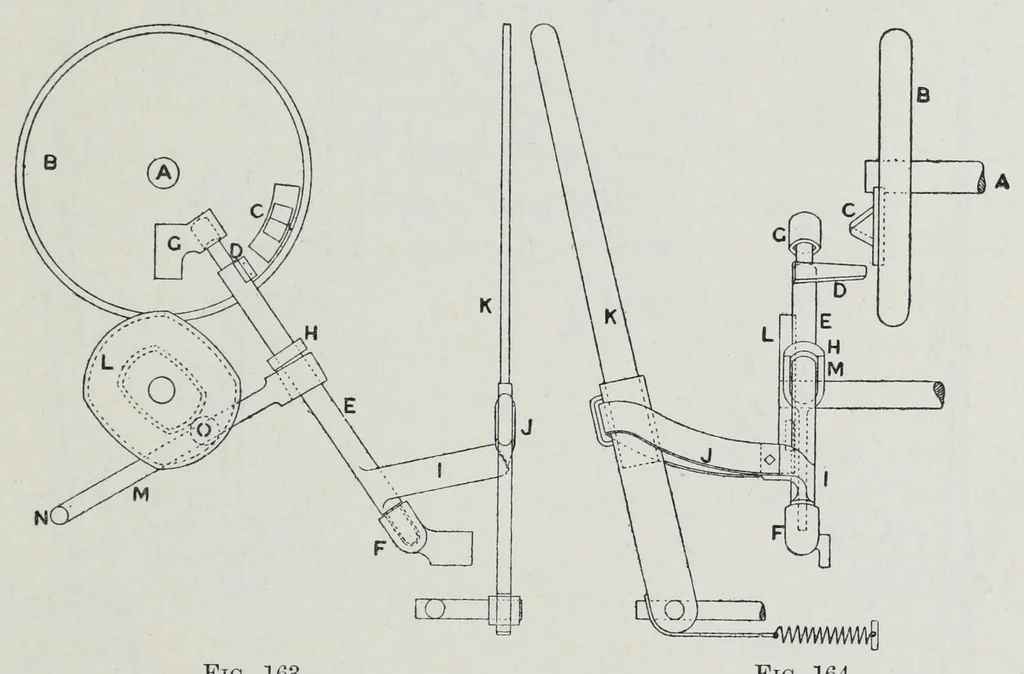

289 PICKING short finger collar A, and curved arm i; the latter is connected to picking arm h by passing strap ] round its shoe in the usual manner. Shaft e is elevated diagonally by a box tappet /, keyed upon the bottom shaft, that causes lever m to oscillate on pin by means of bowl 0, running on… … Fig. 163. Fig. 164. their normal positions lever m and shaft according to the shape of tappet I ; if the former, finger d is higher than striker c, therefore picking arm A remains stationary ; if the latter, d and c are brought together, and the pick is delivered. By altering the form of tappet I…
