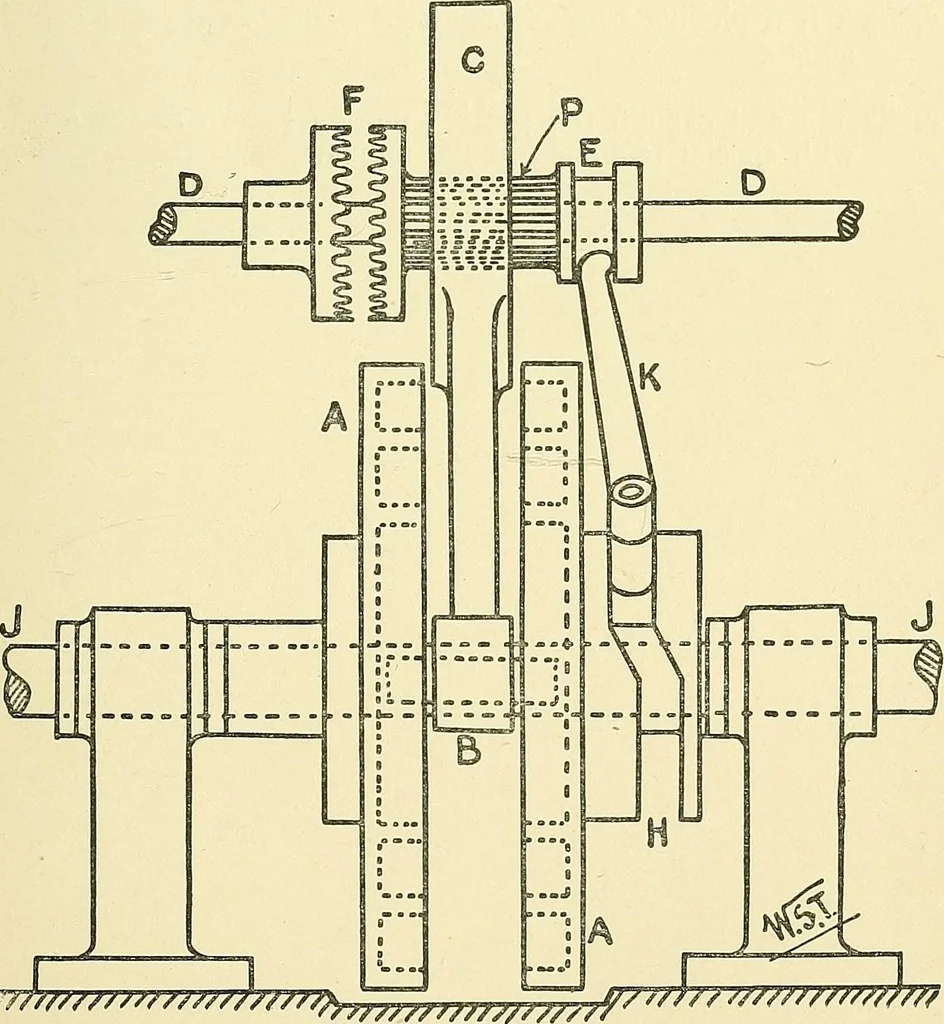

In Fig. 63 the cam H is used to slide the wheel P out ofgear with the clutch at F. … Fig. 63 0 TEXTILE MECHANICS EXERCISES 1. Sketch the crank arrangement for actuating the slay in a loom. 2. Sketch and describe a simple form of cam such as a tappet, giving reasons for the shape adopted. 3. Sketch and describe the action of any cam with which you are acquainted. 4. Describe an…
