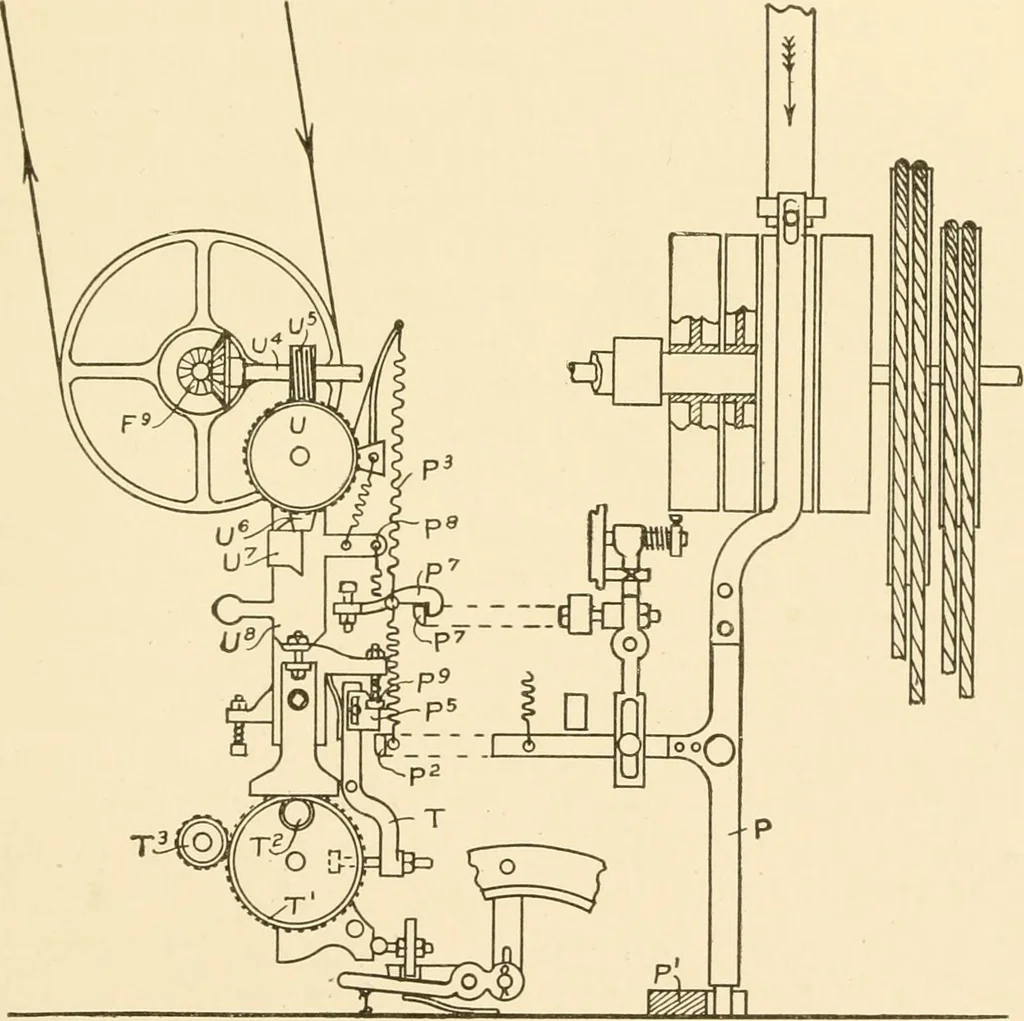

ulley.The shipping of the belt to the third pulley causes the main shaft to Fig. 169. 278 WOOLEN AND WORSTED SPINNING 257 revolve as the pulley is attached to it, thus causing the bevel gear P(also shown in Fig. 15G) to revolve. F^ meshes with a bevel gear ona short shaft at right angles to it. On… … Fig. 170. Details of Twist Slide. plate, thus forcing the casting U® to slip by casting U^, this allowinggear and slide to drop. The dropping of the twist liberates the detent lever so that thecarriage will stop when it strikes in unless it is forced back underthe catch P. The dropping of the twist…
