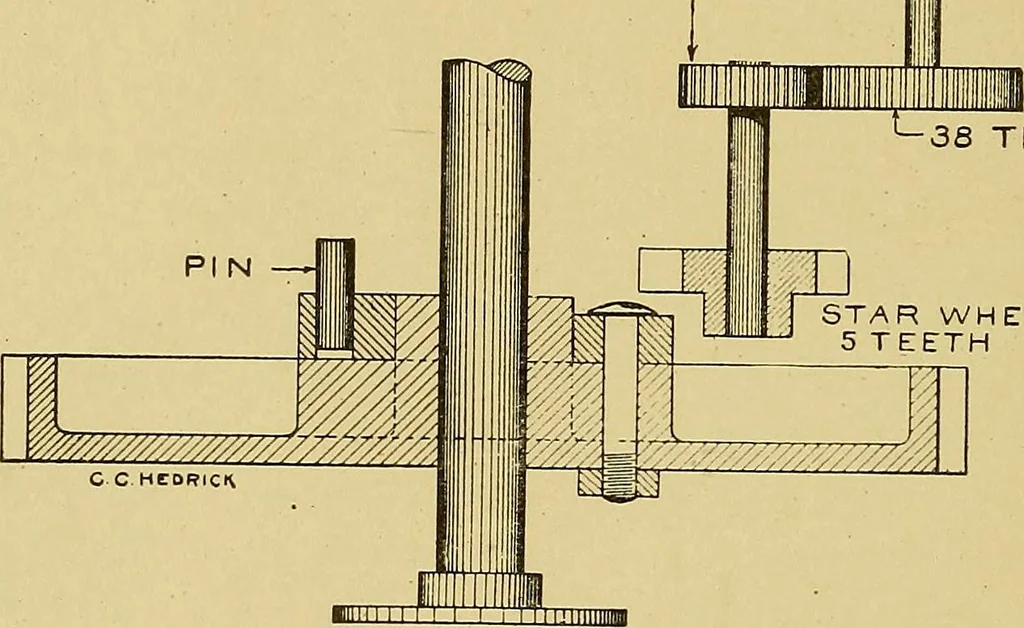

he end of the bottom feed roll, C,any movement given to the stajwheel would thus be communi-cated to the feed rolls. During a portion of each revolution of the cylinder shaft, thepin, Fi, which describes a circle of about five inches in diameter,engages one of the teeth of the starwheel, causing it… … 38 TEETH STAR WHEEL5 TEETH TIMING DIALFig. 114. Section of Feed Roll Gearing. To prevent any movement of the starwlieel, while it is not beingacted upon, the face of its teeth are made concentric with theplate, E2, on the hub of the gear, D, Avith which it is in contact. The movement of the feed…
