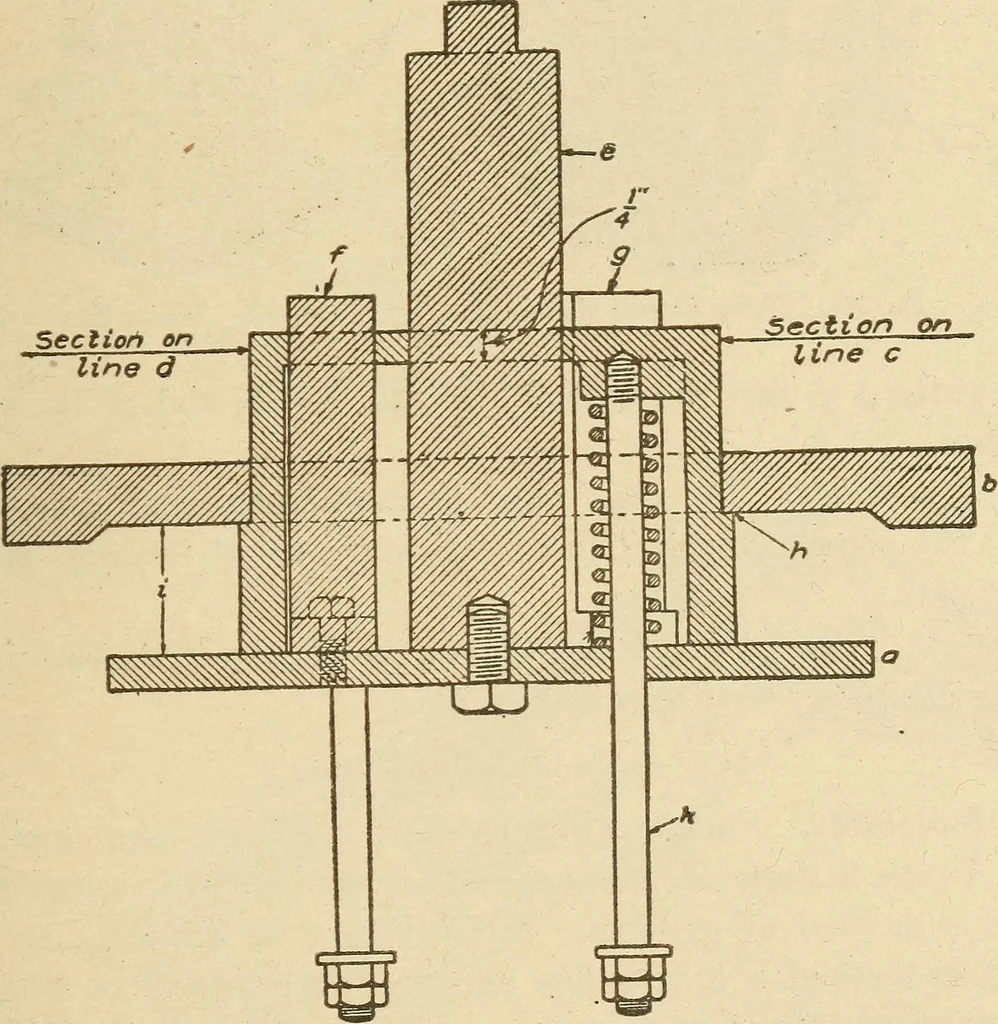

Fig. 359 Casting Molded on Double-Draw Strippmg-Plate Machine PATTERN MAKING 207 Jaw Pattern. Six castings will be required of the jaw pattern/.A sketch of the master pattern is shown in Fig. 362. A file finishis to be allowed to the upper end and a planing or milling finishof r^ i^ch allowed to… … Fig. 360. Section of Pattern, Stripping Plate, and Draw Platefor Casting, Fig. 359 bosses J-inch soft steel rods are fitted, as shown at k in Fig. 360.These bosses are located so as to come between every other jawpattern, and holes are to be drilled in the draw plate through whichthe steel draw…
