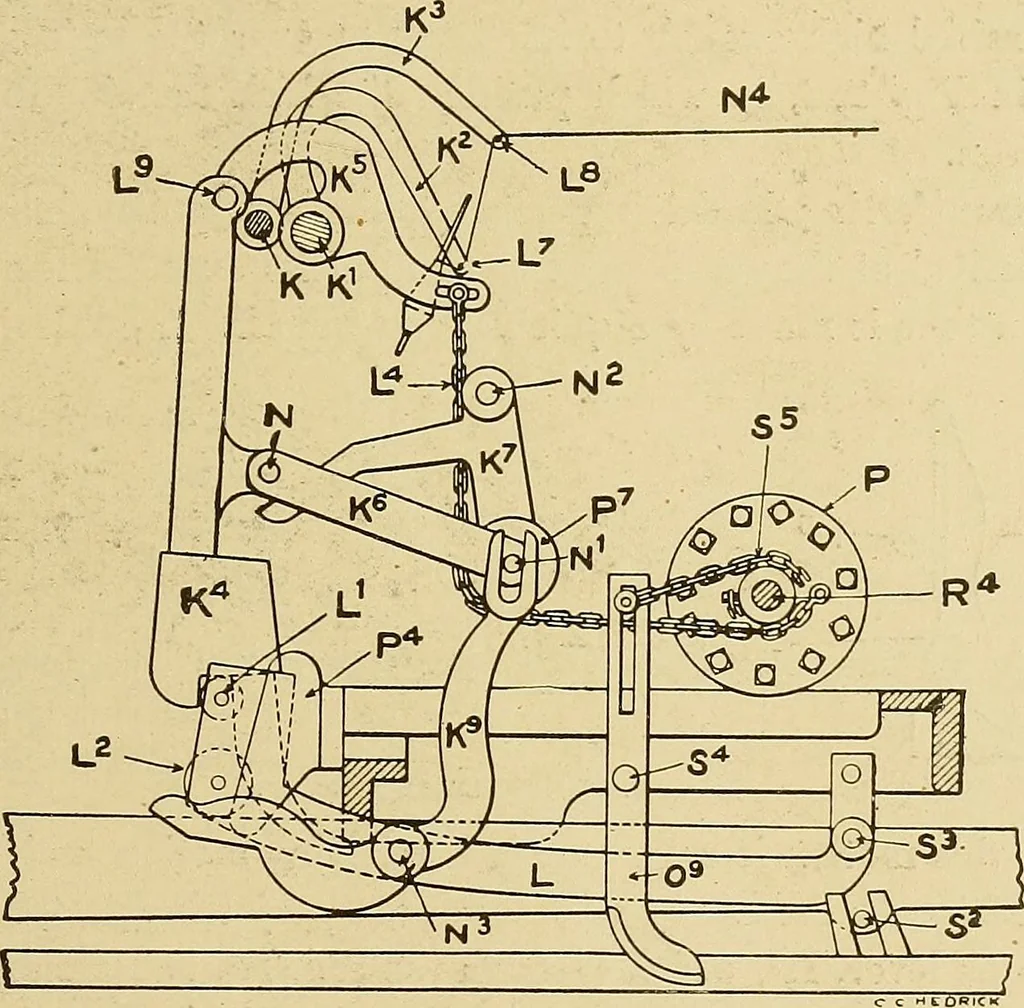

this allows the spring, C, to draw back on the lever whichcomes against the collar, O^, upon the backing-off rod, moving therod back and the friction becomes disengaged. The fallers are drawn down and locked in the following manner:Upon the drum shaft, R*, is a plate, P, to the hub of which is… … FLOOR LINE Fig. 226. Elevation Showing Details of Mule Carriage. shaft have no effect on the plate, as it is loose upon the drumshaft. But when the direction of the drum shaft is reversed, to unwindthe yarn from around the spindles, the plate also rotates, being drivenby a pawl and ratchet. The…
