Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 317

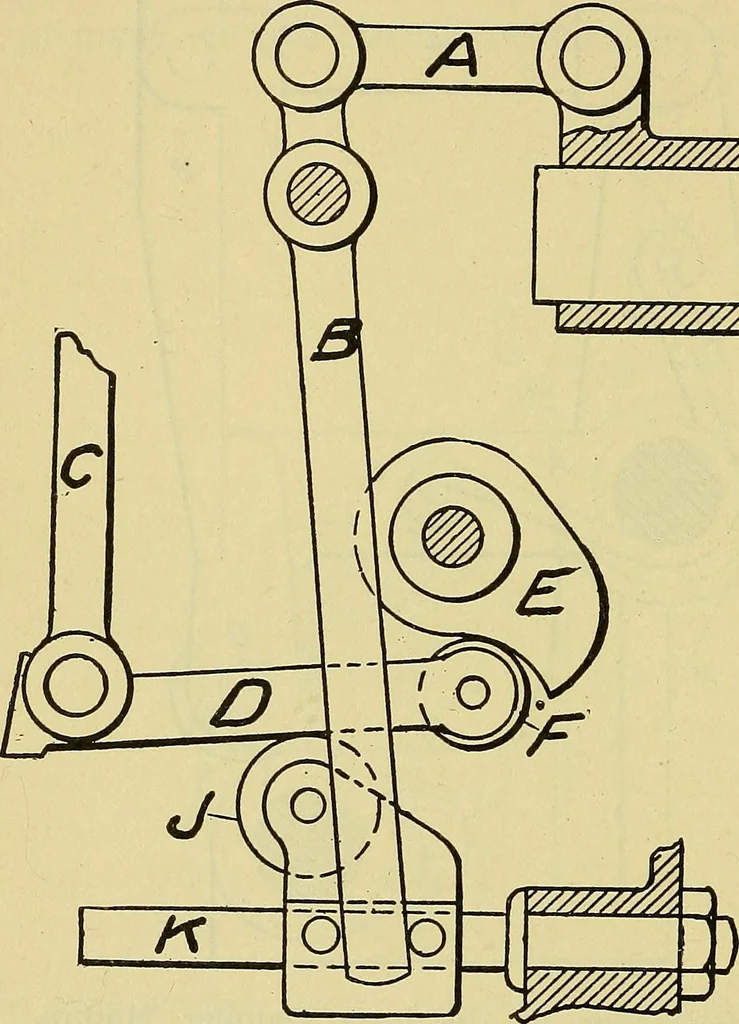

with the specialdesigns for increasing efficiency, and (2) for enabling more 304 SBLF-PROPBLLBD VEHICLES. complete control, either automatic or manual. Under the firsthead may be included such elements of design as refer to thediameter of the cylinder bore and the length of the stroke,as compared… … FiG; 225.—Mechanism of the Peugeot Variable Exhaust Valve Lift. A is alink attached to spool, J, sliding on the rotating shaft, H, as shaft Qis slid backward or forward according to the impulses of the centri-fugal governor. The link, A, actuates the lever, B, sliding the roller,J, on shaft, K. The…
Automobiles
