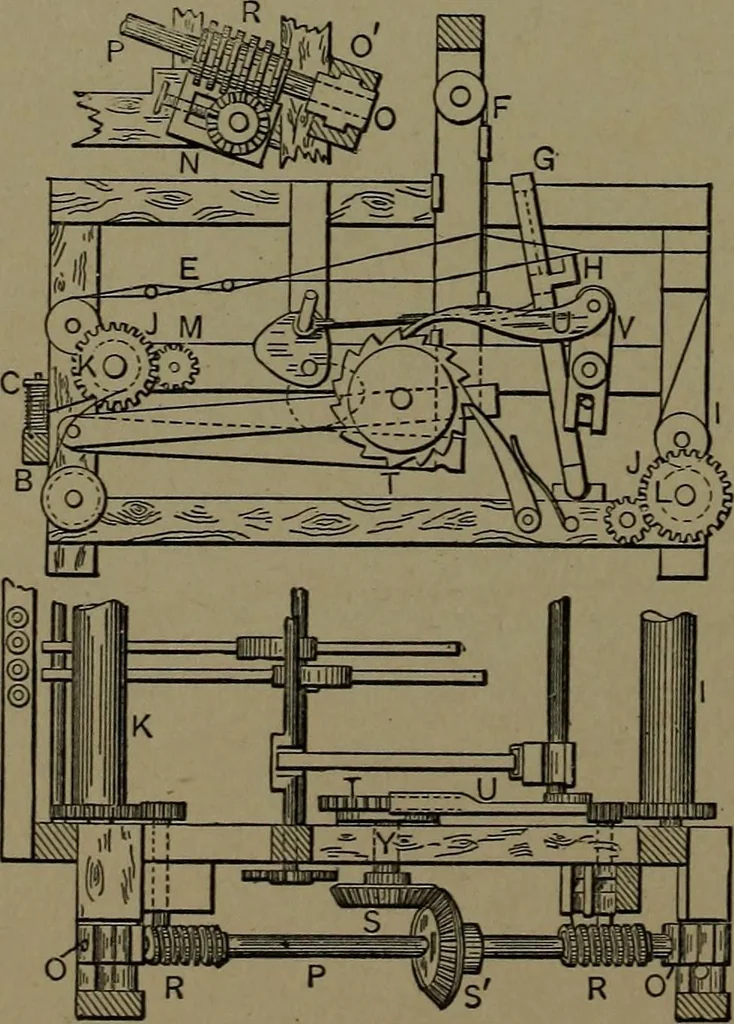

fixed. Horizontal section and plan. 1443/2. TAKE-UP AND LET-OFF MOTION FOR LOOMS. —The detailed parts are:Take-up roller I, let-ofT rol-ler K, a pawl U pivoted tothe vibrating lever V operatedby the shuttleboard frameG, H, and moving the ratchetT, bevel gear S, S, shaft P,worm gear R, R, and… … Section XVI. CONSTRUCTION AND DEVICES. Mixing, Testing, Stump and Pile Pulling, Tackle Hooks, Pile Driving,Dumping Cars, Stone Grips, Derricks, Conveyer, Timber Splic-ing, Roof and Bridge Trusses, Suspension Bridges. 1444. POST AUGER.—Often made with asingle turn to the blade. Used also for…
