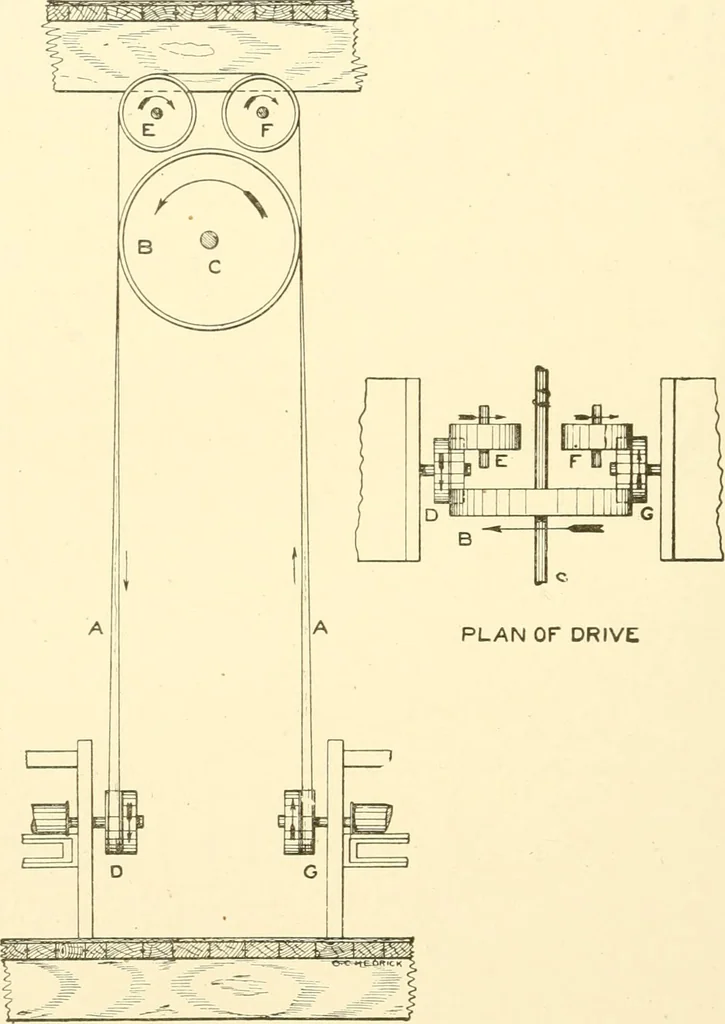

angles to the machines, and upon these mainlines are the pulleys, each pair of frames being driven from one pulleyby the same belt. A plan and an elevation of a drive of this description are shown 270 COTTON SPINNING 229 ^.^^=^m^^^^=^\%^S^=^^^^^=-=^%^^==-^ M <fit ^ ir4= ^ 271 230 COTTON SPINNING… … ELEVATION OF DRIVE Fig. 191. Pulleys for Drawing Frames Placed at Right Angles to Main Line. pulley, G, on the frame at the right hand, then up and around thepulley, B. This method of driving two frames from one pulley makes averv neat and simple drive and saves shafting and belting compared 272…
