U.S. patents covering time keeping mechanisms (1892)
United States. Patent Office · [Washington : United States Patent Office] · leaf 271

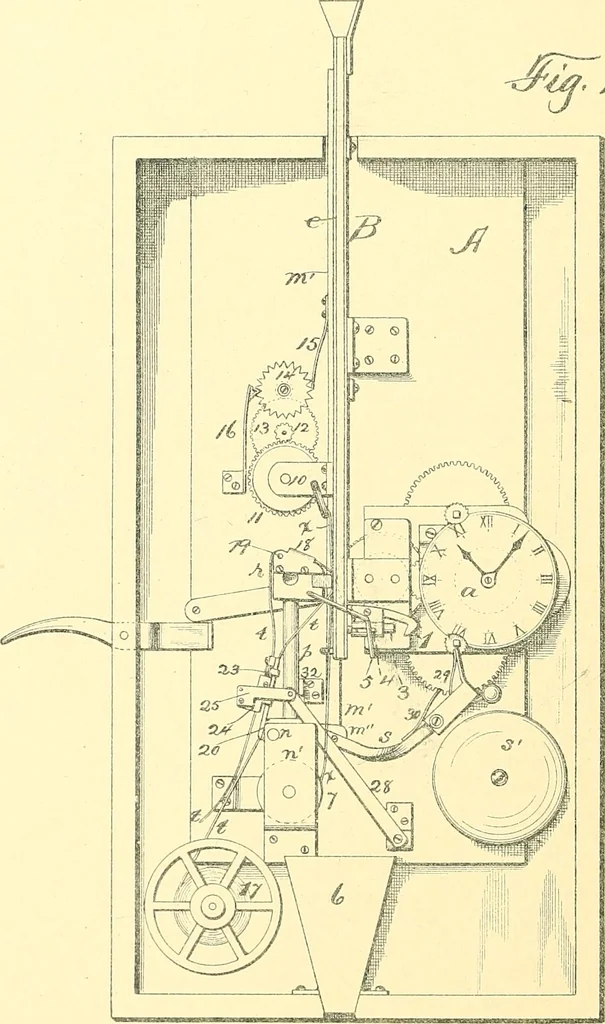

rator and circuit-closer, sub-stantially as specified. 5. The combination, with the time-printingmechanism, of the reel I, carrying the paper 115strip r, the reel J for receiving the paper strip,the ratchet-wheel w, the lever &, the spring-pressed pawl a, the link c, and the printing-bar G,… … WITNESSES: JNVENTOR, BY ^ ■1&4 ATTORNEY^J (No Model.) No. 482,293 6 Sheets—Sheet 2. W. L. BUNDY. WORKMANS TIME RECORDER. Patented Sept. 6, 1892.
Clocks and watches
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
