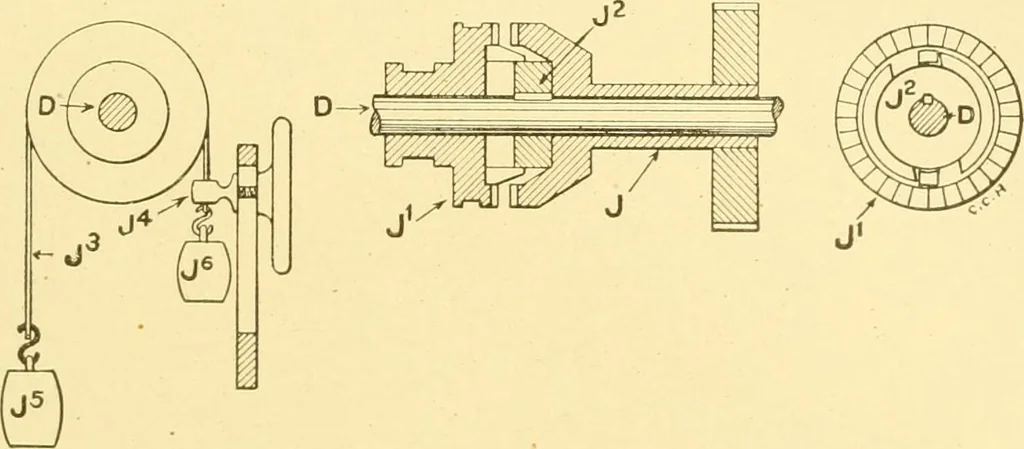

e front roll, D. A dog, J-, is keyed to theshaft. On the part, J\ of the clutch are two lugs which projectbetween the ears of the dog, P. 330 COTTON SPINNING 289 When the teeth of J^ are caused to engage with the teeth of J,motion is communicated to the front roll by the lugs on J^ turninguntil… … Fig. 241. Snarling Motion. is reached. When the clutch is thrown out, the part, J*, is turnedbackward by the weight, J^ overbalancing P, until the lugs comeagainst the back side of the ears of J^ The carriage starts out atthe same time that the clutcli is thrown in, and, as no moyement isgiven to…
