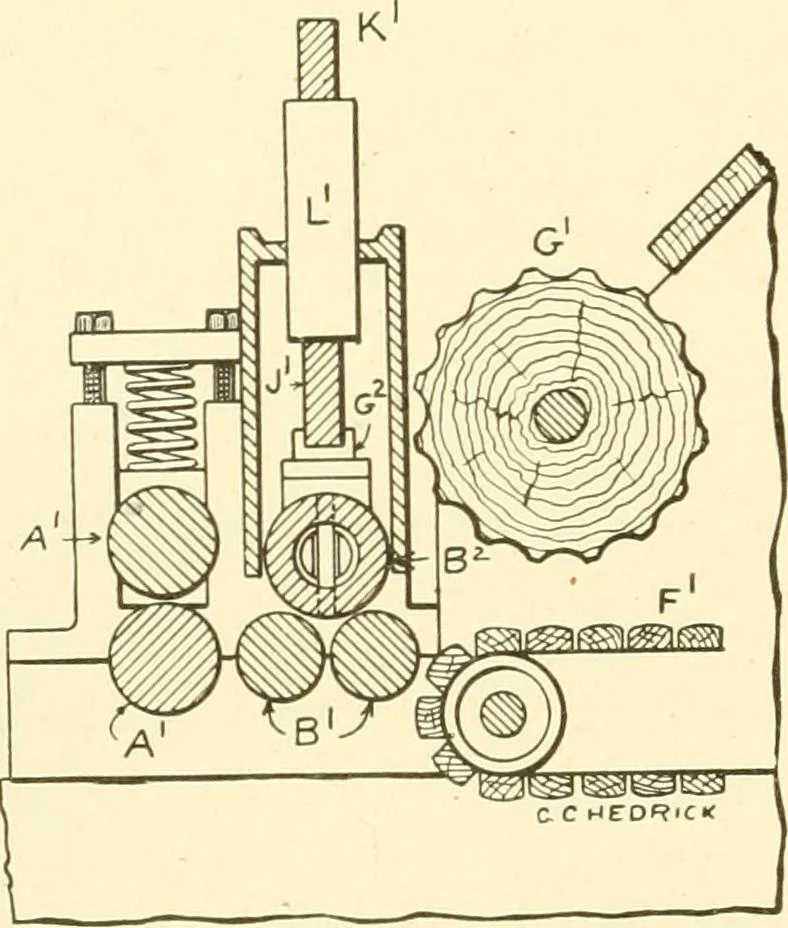

cone is shown at the right in Fig. 31.On the end of the beater shaft, and shown by dotted lines, is apulley, K, which drives the drum, F, by means of the belt, L, pulley,M, and gears, N and O, the last being upon the end of the drumshaft. On the top a[)ron roll is a gear, P, which drives a… … Fig. 32. Section Showing Evener Rollsand Feed Rolls. 78 COTTON SPINNING. 43 and Di, and the evener rolls, B^ and B^, are driven by the gears,Ci and El. It will be seen that by this arrangement any changein the speed of thee levating ai)ron directly affects the speed of theevener and feed rolls.…
