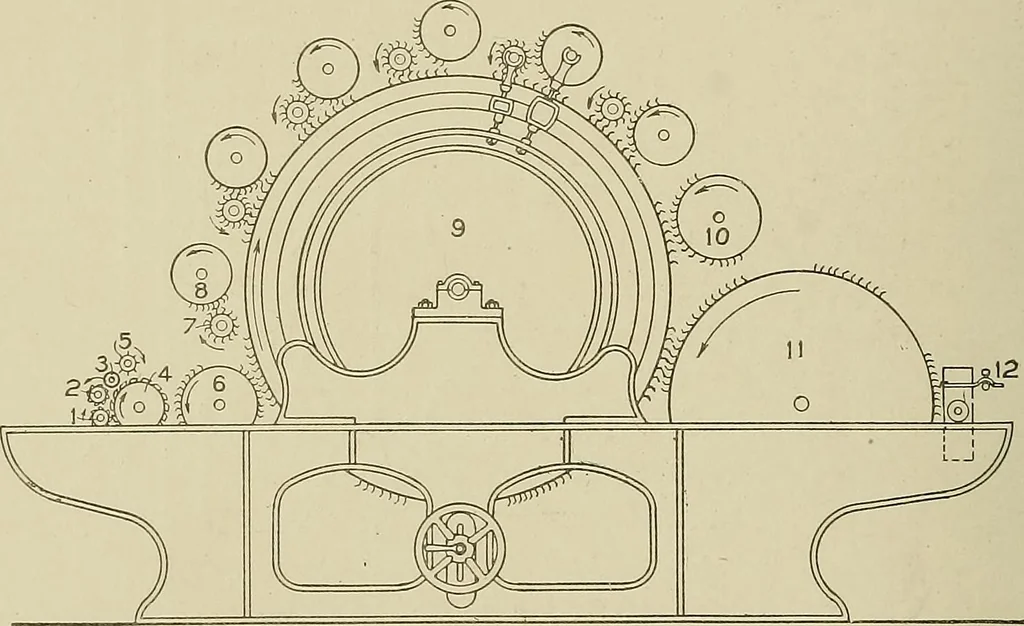

ll, as shown at 3 in Fig. 71, should beset close to the top feed roll. Its purpose is to brush back anystock that is carried up to it on the top feed roll. Burr Cylinder. The burr cylinder, shown at 4 in Fig. 71,should be metallic covered. It is absolutely necessary to keep thiscylinder sharp as… … Fig. 71. Side Elevation of First Breaker Card. It should revolve against the points of the wire on the burrcylinder. If the burr guard revolved in the opposite direction itwould have a tendency to raise the wool out of the wire, whileby revolving against the points of the wire on the cylinder,…
