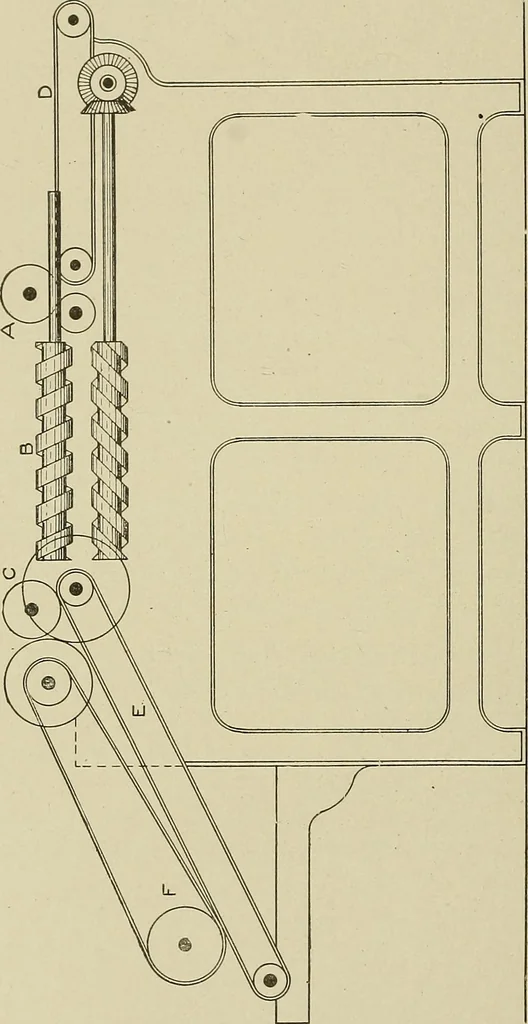

eeth on the front roll shaft, which drives the shaft L through two gearsof one hundred teeth each. The back screws M are driven throughthe bevel gears N and O. There is a gear P on one end of the shaftL which, through a chain of gears, drives the back roll R. The apronroll is driver by a gear on… … the set. The front and back rolls and fallers of this machine areshown at Fig. 84. All wool that is to be prepared is straightened out by hand beforeit is put onto the feed sheet D. The operative is expected to lay the 150 WOOLEN AND WORSTED SPINNING 135 fibers as nearly parallel as possible, and…
