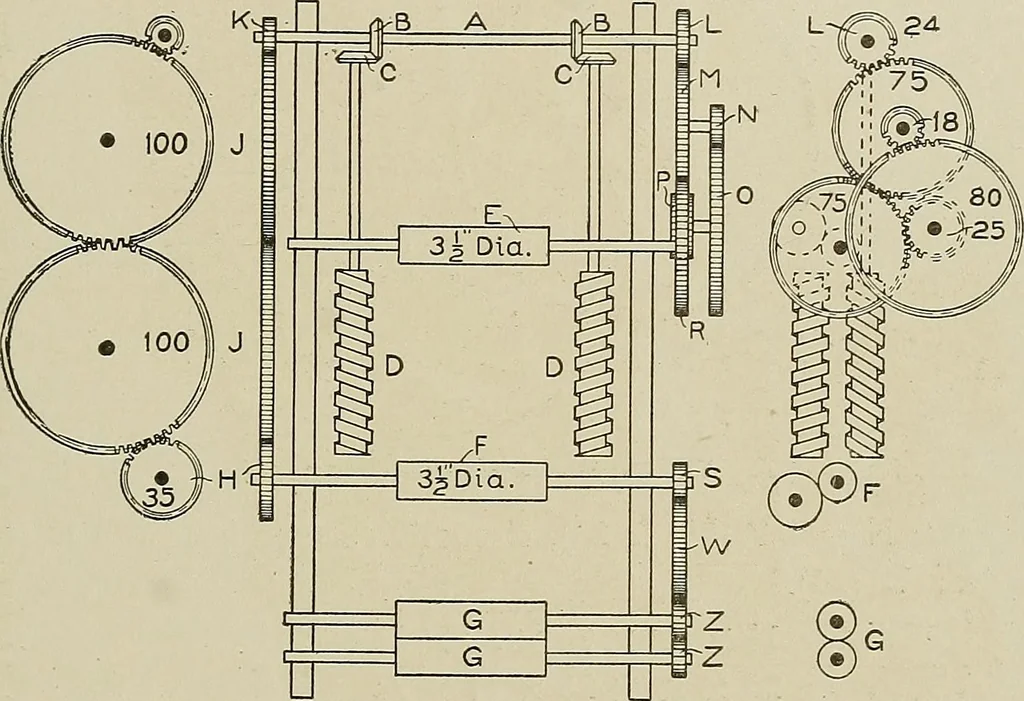

eth. DD are thetop screws; E is the bottom back roll; F is the bottom front roll; andGG are the calender rolls, which take up the sliver as it is delivered bythe front rolls. H is a gear of 25 teeth on the front roll shaft; J J aretwo intermediate gears; and K is a gear of 15 teeth on one end of… … Fig 90. Plan of Gill Box. respectively The gear P is directly underneath the gear R, of 75teeth, which is on the back roll shaft. The gear S on the front rollshaft drives the calender rolls through the gears W, Z, and Z. Thus it will be evident that the screws are driven by the bevelgears BB…
