Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)

American School (Lansing, Ill.) · Chicago : American school of correspondence · leaf 148

An illustration from Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects, 1911, leaf 148

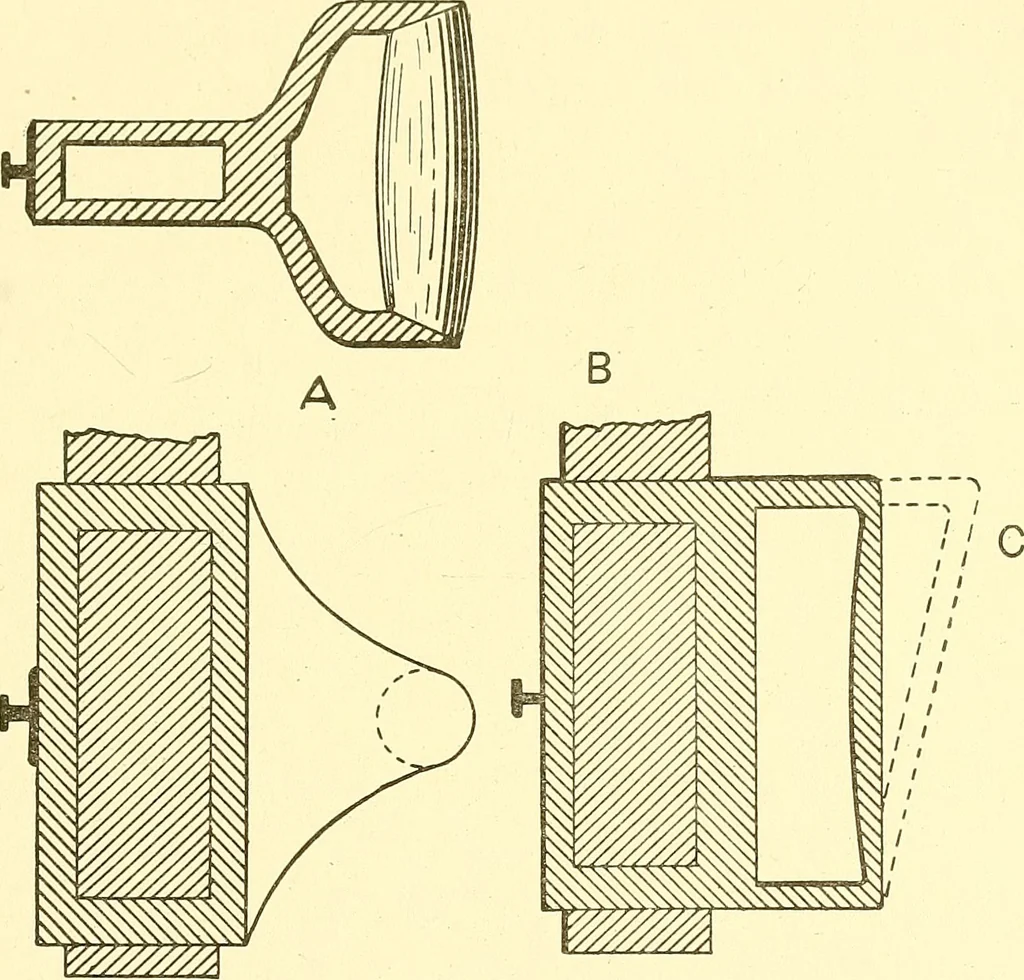

when the cam works around, all, or almost all, ofthe outer end of the cone will be in contact with the point. Dogs on Picking Arms. There are three distinct kinds of 126 WEAVING. 113 dogs used on the picking arms; (Fig. 77) A, B, C. A is certainlythe better; there is almost a straight pull on the… … Fig. 77. Picking Dogs. Lug straps will last ten times longer by the use of A than they willby using B or C. Picking Stand and Shoe. This is called the Stearns parallelmotion. When fixing the picker stand to the rocker shaft, careshould be taken to see that the picking stick moves freely in thebox,…

Textile fabrics · Textile industry

Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
