The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 369

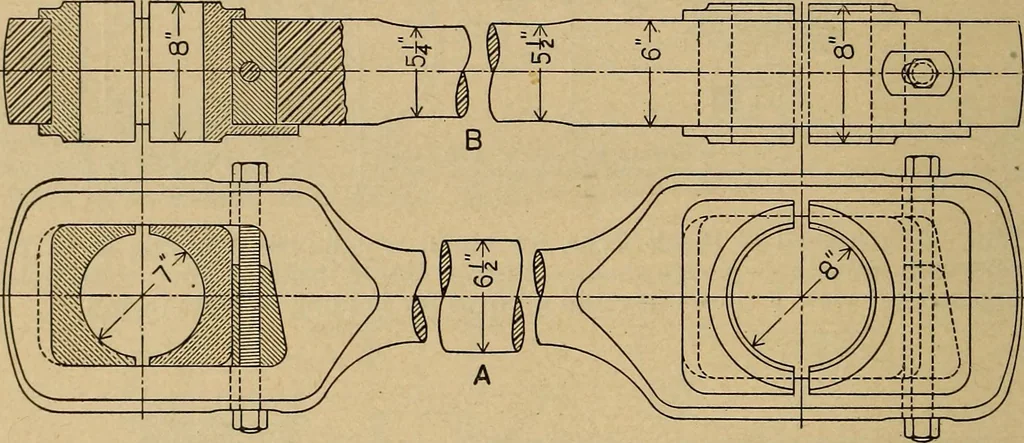

rentkinds of rubbing surface, but only the one example in Fig. 210 (char-acteristic of large, stationary engines) has provision for adjustment totake up wear. (h) The Connecting Rod. — This piece may be analyzed into ashank or body and two ends or heads. ^ In large, slow-running enginesthe shank is… … Fig. 212. — Connecting Rod with Solid Ends, belonging to Corliss engine in Fig. 3. Scale 1 to 15. that it approaches a rectangular section as the diameter increases.Stationary high-speed engines (Fig. 2) and many locomotives have therectangular section, increasing in depth toward the crank end.…
Steam-engines · Steam-turbines
