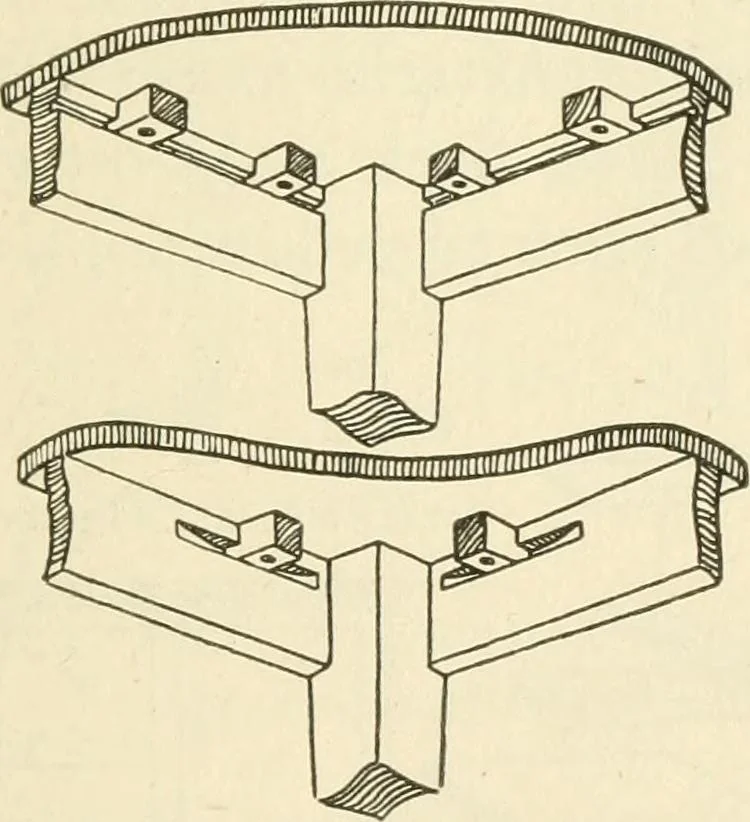

or wide tops the best fastening is the wood button, Fig. 425. This style of fasten-ing permits quite a range ofmovement of the top in shrink-ing and swelling without dan-ger of cracking or checking. Inmachine work the groove inthe rail is plowed, as a rule, thefull length of the rail. 241. Drawer… … Fig. 425. Buttons Used toFasten Table Tops. 288 WOODWORK FOR SECONDARY SCHOOLS. out but also to prevent access to a drawer by the removalof the drawer just above it. The guide in this caseshould be glued to the runner or bearer. In cheaper work Ten ON ED OR, guides are often formedas in Fig. 427,…
