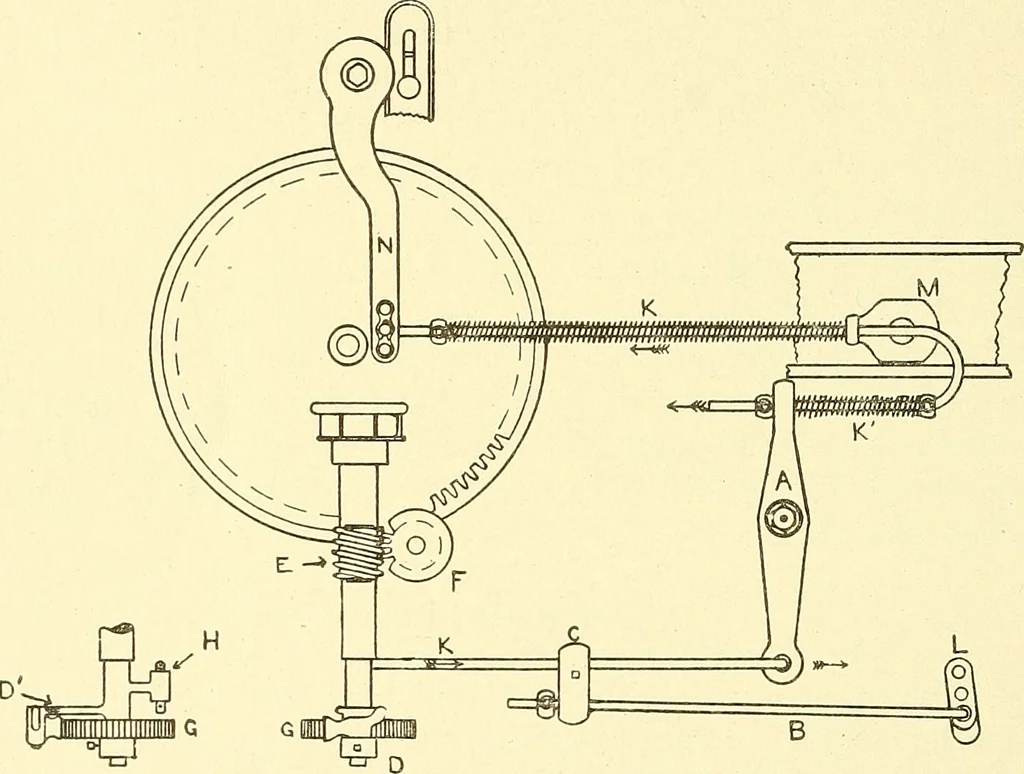

led gear is fixed on the l)ottom shaft. The shaftthat supports the sliding gear has a worm fixed on its end. Thisworm is geared into a worm gear fixed on the aibor of the beam.When tlie lay beats up, the warp is tightened and in this waythe whip roll is caused to oscillate ; the whip roll arm then… … Fig. 94. Gear Let-Off. considered a very good motion. The length of yarn let off variesaccording to the oscillation of the whip roll, because the frictionpulley will come in contact with the fast pulley earlier, and willalso remain longer in contact. It is not always best to give much motion to the…
