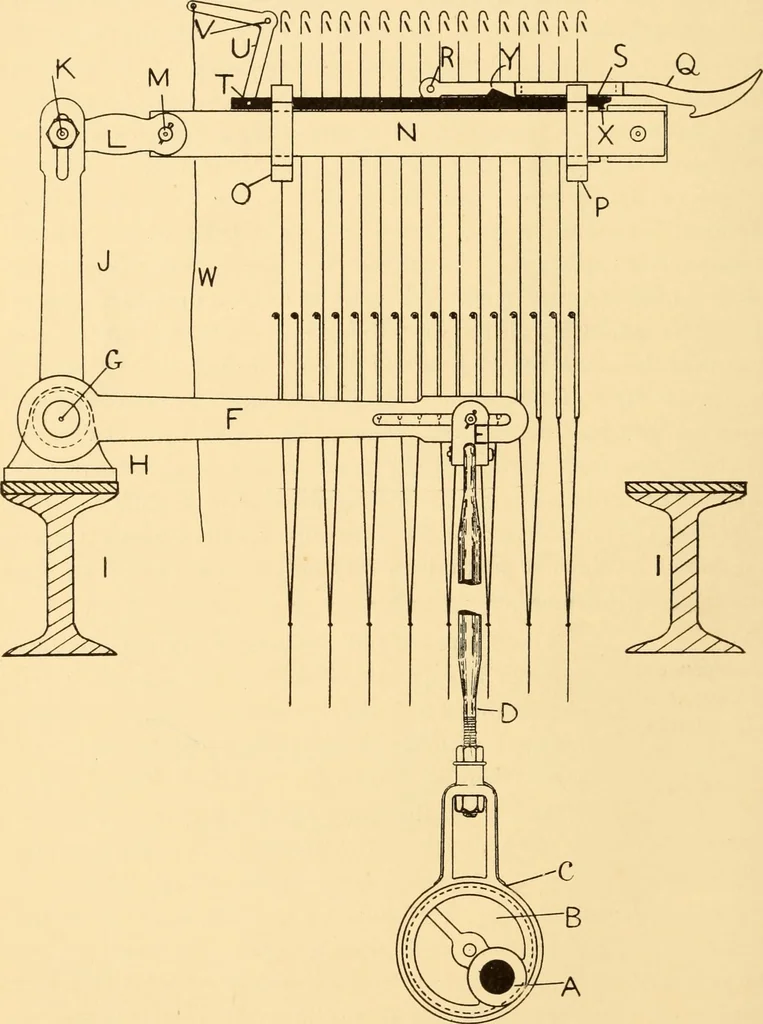

justed between these sideprojections on to the periphery of the eccentric which is free torotate inside the collar and freely reciprocate it, together with theconnecting rod d which joins the collar to an adjustable swivel linke and the simple lever f, which is secured to a short shaft g, 9°… … Fig. 80. Jacquard machines independently of any direct support from theloom. A second lever j is also secured to the shaft G, but at right DOUBLE LIFT JACQUARD MACHINES. 91 angles to the lever f. An adjustable stud k combines the lever Jand a short connecting link l. A second and loose stud m joins…
