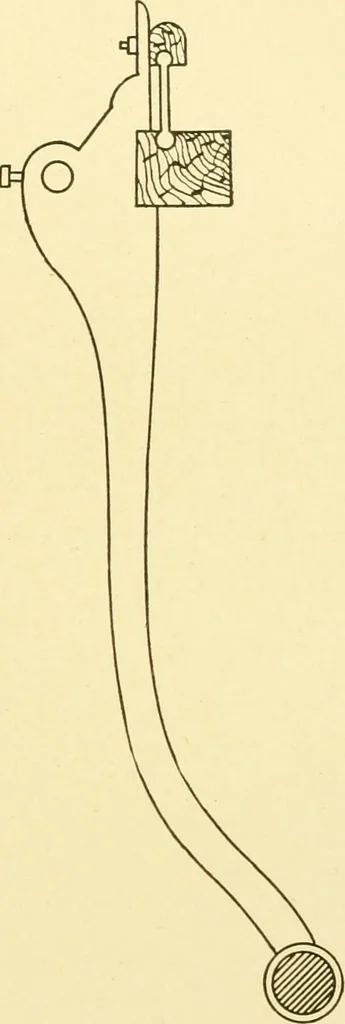

es inthe least it binds the shaft. This partconstructed in the following manner isrepaired in much less time: (see Figs. 50and 51). If the lower portion of the laysword is bolted to a bracket, which is set-screwed to the rocker shaft, it is a com-paratively easy matter to loosen the bracket from… … Fig. 49. Lay Sword witliRocker Shaft Connections. 91 84 WEAVING. or nose. A circular plate is compounded with the boss, and throughwhich the shaft passes, this portion being tixed to the shaft. At-tached to this fixed portion should be the outer portion of the cam,which comes in contact with the…
