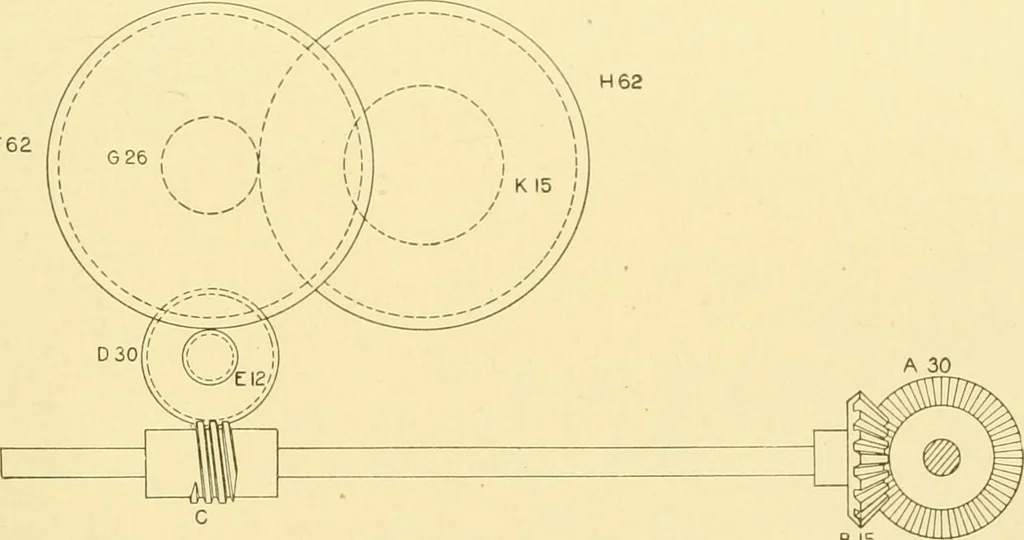

a constant number; that is, a number, when multi-plied or divided, will give the picks or change gear required. Toobtain the constant, proceed as in the first calculation, leaving offthe change gear. A X X XE Change gear X Constant = Picks.Picks -f- =: Change. B XD XF = Constant 2,000 or 2 A X X X… … Fig. 100. Continuous Take-Up Motion. Continuous. Fig. 100 shows a continuous take up motion.A is a bevelled gear fixed on tlie bottom shaft, imparting motionto a second bevelled gear B. On the same shaft as B, is a singleworm C. This is geared into a worm gear D; and through the 161 148 WEAVING.…
