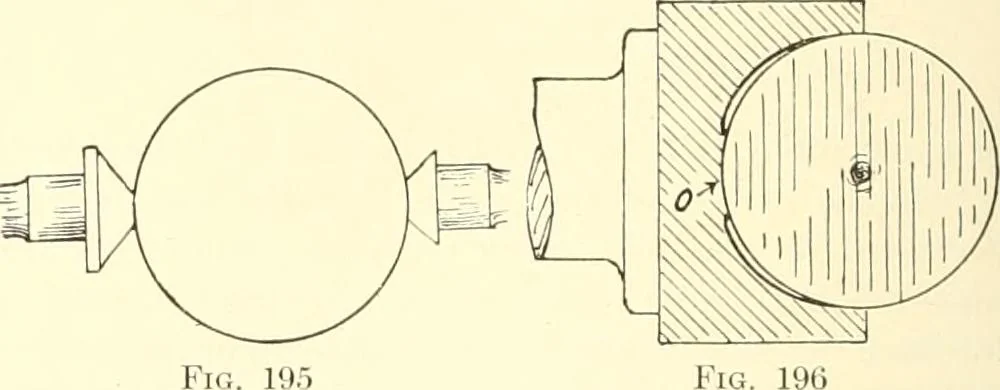

of the finishedface or edge, anil with care the half-turned pulley orring or sphere is pushed in, tried until it runs perfectlytrue, and then turned as securely as if fa.stened to theface plate with several screws. The hole in the chuckmust not be made too deep, as the piece must have aback to lie… … ing the finished face of a small pulley, the other facebeing ready to turn. Figure 194, c gives a sectional view of a completedoctagonal ring held in its chuck. In turningaround ring, two chucks will have to be used. The drawing also shows the templet, or shape, whichcan be used as a guide in…
